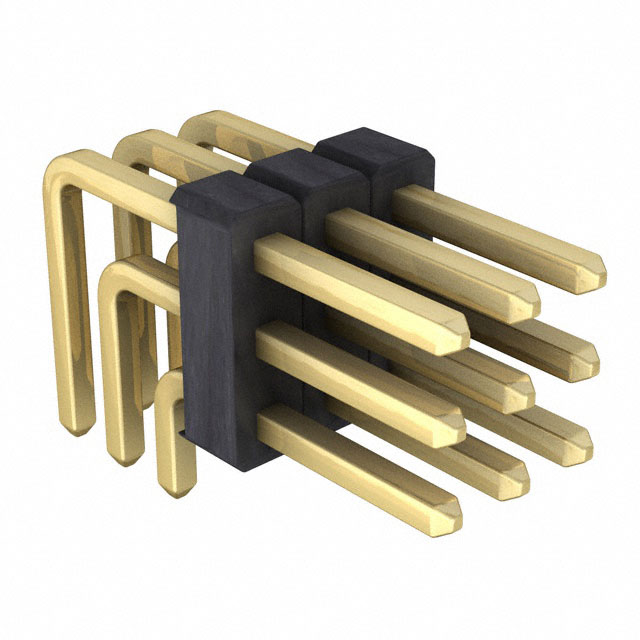

894-70-009-20-002101
![894-70-009-20-002101](/thumb/medium/00/894-70-009-20-002101.jpg)
![](/upfile/linecard/medium_Preci-Dip.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 894-70-009-20-002101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 894-70-009-20-002101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 894-70-009-20-002101 |
---|---|
Manufacturer | Preci-Dip |
Description | CONN HDR 9POS 2.54MM T/H R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 460 pcs | ||||
---|---|---|---|---|---|
$0.381 |
- Product parameter
Product parameter
Part Number | 894-70-009-20-002101 | Manufacturer | Preci-Dip |
---|---|---|---|
Description | CONN HDR 9POS 2.54MM T/H R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 95203 pcs | Data sheet | |
Category | Connectors, Interconnects | Voltage Rating | 150VDC |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | 894 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
Number of Positions Loaded | All | Number of Positions | 9 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.300" (7.62mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm) | Current Rating | 3A |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
Contact Length - Mating | 0.276" (7.00mm) | Contact Finish Thickness - Post | Flash |
Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
