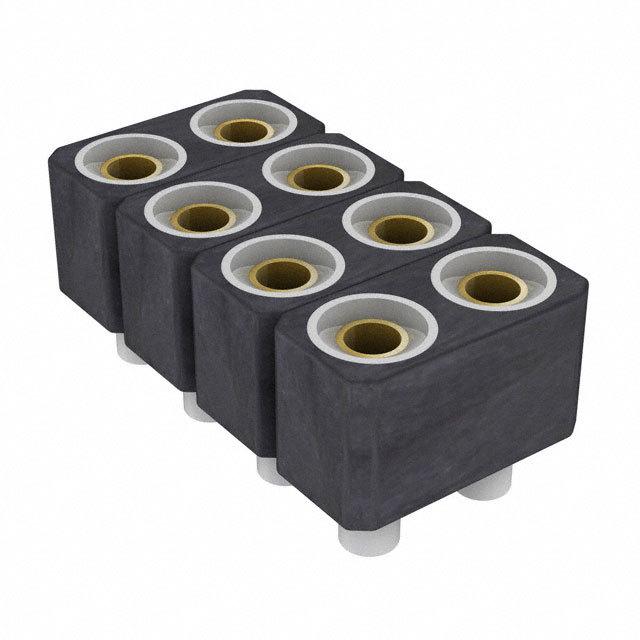

803-87-008-30-480101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 803-87-008-30-480101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 803-87-008-30-480101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 803-87-008-30-480101 |
---|---|
Manufacturer | Preci-Dip |
Description | PCB CONN SURFACE MOUNT 2.54MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 930 pcs | ||||
---|---|---|---|---|---|
$0.168 |
- Product parameter
- Data sheet
Product parameter
Part Number | 803-87-008-30-480101 | Manufacturer | Preci-Dip |
---|---|---|---|
Description | PCB CONN SURFACE MOUNT 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 130343 pcs | Data sheet | 803-xx-yyy-30-480101 |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Series | 803 | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 8 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.165" (4.20mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 8 Position Socket Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | 3A |
Contact Type | Female Socket | Contact Shape | Circular |
Contact Material | Beryllium Copper | Contact Length - Post | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Socket | Applications | - |
