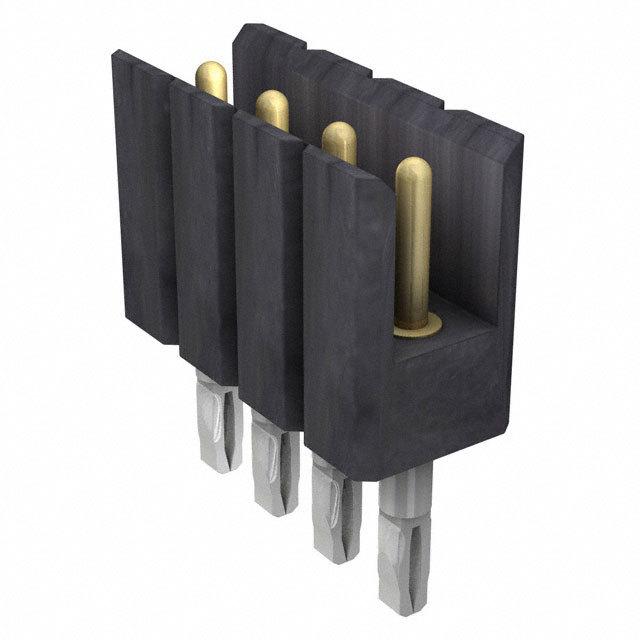

800-V3-004-6B-002101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 800-V3-004-6B-002101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 800-V3-004-6B-002101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 800-V3-004-6B-002101 |
|---|---|
| Manufacturer | Preci-Dip |
| Description | CONN HDR 4POS 0.100 T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 520 pcs | ||||
|---|---|---|---|---|---|
| $0.322 | |||||
- Product parameter
Product parameter
| Part Number | 800-V3-004-6B-002101 | Manufacturer | Preci-Dip |
|---|---|---|---|
| Description | CONN HDR 4POS 0.100 T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70393 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 150VDC |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 800 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.378" (9.60mm) |
| Other Names | 800-V3-004-6B-002100 800-V3-004-6B-002100-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.272" (6.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
