Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > TOP254MN

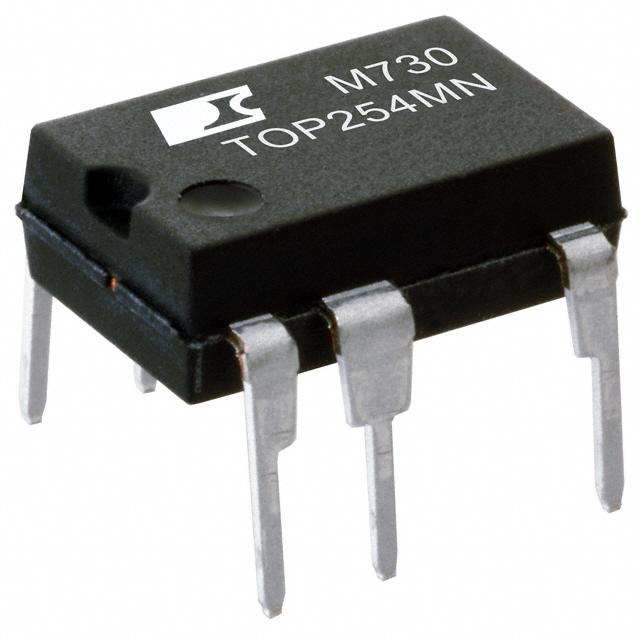

TOP254MN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TOP254MN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TOP254MN
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PROG OVP 10CSDIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 67129 pcs
Reference Price (In US Dollars)	350 pcs
Reference Price (In US Dollars)	$0.516

Product parameter
Data sheet

Product parameter

Part Number	TOP254MN	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PROG OVP 10CSDIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67129 pcs	Data sheet	TOP252-62
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Flyback
Supplier Device Package	SDIP-10C	Series	TOPSwitch®-HX
Power (Watts)	28W	Packaging	Tube
Package / Case	10-SDIP (0.300", 7.62mm), 9 Leads	Output Isolation	Isolated
Other Names	596-1175-5	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	66kHz
Fault Protection	Current Limiting, Over Temperature, Over Voltage	Duty Cycle	78%
Detailed Description	Converter Offline Flyback Topology 66kHz SDIP-10C	Control Features	-

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
