Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > TOP224Y

TOP224Y

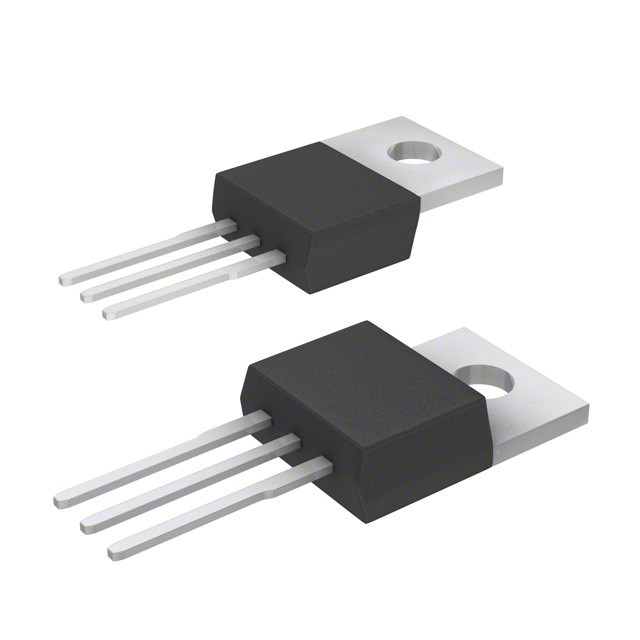

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TOP224Y with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TOP224Y
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PWM OCP HV TO220
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5779 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	TOP224Y	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PWM OCP HV TO220	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5779 pcs	Data sheet	TOP221 - 227
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Boost, Buck, Flyback, Forward
Supplier Device Package	TO-220-3	Series	TOPSwitch®-II
Power (Watts)	75W	Packaging	Tube
Package / Case	TO-220-3	Output Isolation	Isolated
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Internal Switch(s)	Yes	Frequency - Switching	100kHz
Fault Protection	Current Limiting, Over Temperature	Duty Cycle	67%
Detailed Description	Converter Offline Boost, Buck, Flyback, Forward Topology 100kHz TO-220-3	Control Features	-
