Home > Products > Integrated Circuits (ICs) > PMIC - AC DC Converters, Offline Switchers > TNY376PN

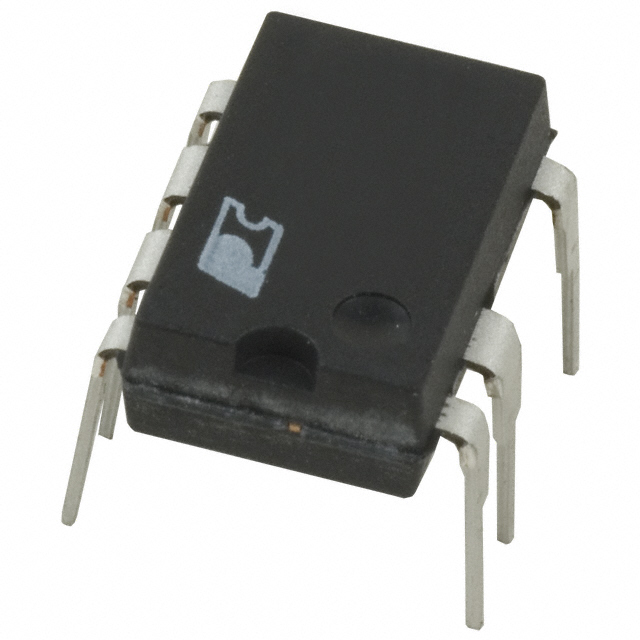

TNY376PN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TNY376PN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TNY376PN
Manufacturer	Power Integrations
Description	IC OFFLINE SWIT OVP OTP HV 8DIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4750 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	TNY376PN	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT OVP OTP HV 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4750 pcs	Data sheet	TinySwitch-PK Family
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	-
Voltage - Breakdown	700V	Topology	Flyback
Supplier Device Package	DIP-8C	Series	TinySwitch®-PK
Power (Watts)	19W	Packaging	Tube
Package / Case	8-DIP (0.300", 7.62mm), 7 Leads	Output Isolation	Isolated
Other Names	596-1143-5	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	132kHz ~ 264kHz	Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage
Duty Cycle	65%	Detailed Description	Converter Offline Flyback Topology 132kHz ~ 264kHz DIP-8C
Control Features	EN

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
