SID1132K

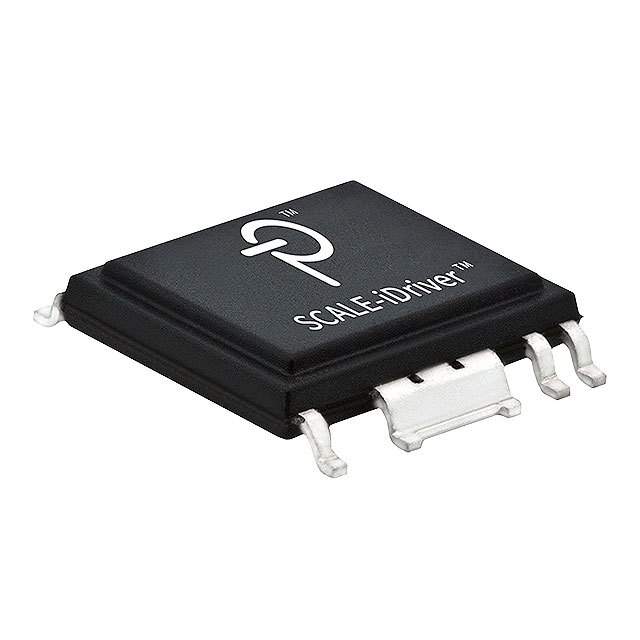

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SID1132K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SID1132K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SID1132K |
|---|---|
| Manufacturer | Power Integrations |
| Description | DGTL ISO 5KV GATE DRVR ESOP-R16B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 1000 pcs | ||
|---|---|---|---|---|---|
| $1.676 | $1.474 | $1.266 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SID1132K | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | DGTL ISO 5KV GATE DRVR ESOP-R16B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27613 pcs | Data sheet | SID11x2K |
| Category | Isolators | Voltage - Supply | 4.75 V ~ 5.25 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | - |
| Technology | Magnetic Coupling | Supplier Device Package | eSOP-R16B |
| Series | SCALE-iDriver™ | Rise / Fall Time (Typ) | 450ns, 450ns (Max) |
| Pulse Width Distortion (Max) | - | Propagation Delay tpLH / tpHL (Max) | 340ns, 330ns |
| Packaging | Tube | Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Other Names | 1810-1069 | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2.5A Gate Driver Magnetic Coupling 5000Vrms 1 Channel eSOP-R16B |
| Current - Peak Output | 2.5A | Current - Output High, Low | 1.2A, 1.3A |
| Common Mode Transient Immunity (Min) | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
