3285

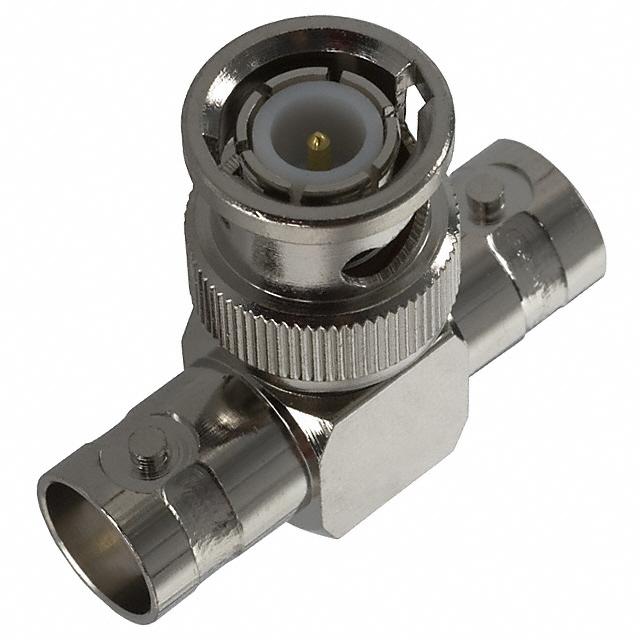

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3285 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3285 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3285 |
|---|---|
| Manufacturer | Pomona Electronics |
| Description | CONN ADAPT PLUG TO JACK BNC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $3.392 | $3.223 | $3.053 | $2.917 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3285 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN ADAPT PLUG TO JACK BNC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11303 pcs | Data sheet | 3285 |
| Category | Connectors, Interconnects | Style | T-Shape |
| Series | - | Packaging | Bulk |
| Other Names | 501-1134 5935004632486 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Features | - |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohm | Convert To (Adapter End) | BNC Jack, Female Socket (2) |
| Convert From (Adapter End) | BNC Plug, Male Pin | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper; Brass | Body Material | Brass |
| Body Finish | - | Adapter Type | Plug to Jack |
| Adapter Series | BNC to BNC, Dual |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
