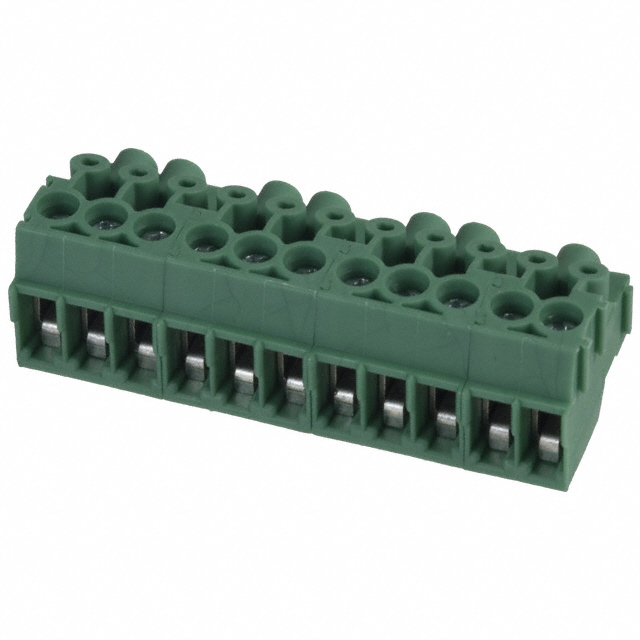

1984109
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1984109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1984109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1984109 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 11POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.833 | $0.811 | $0.758 | $0.698 | $0.644 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1984109 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 11POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46417 pcs | Data sheet | COMBICON Compact 3.5mm Series Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 5mm |
| Wire Gauge or Range - mm² | 0.2-1.5mm² | Wire Gauge or Range - AWG | 16-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Plug for Unshrouded Header | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON PT |
| Screw Size | M2 | Positions Per Level | 11 |
| Plug Wire Entry | 90° and 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 277-1715 PT 1.5/11-PVH-3.5 PT1.5/11-PVH-3.5 |
| Operating Temperature | - | Number of Positions | 11 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.437" (11.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 11 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° and 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 8A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
