1963560

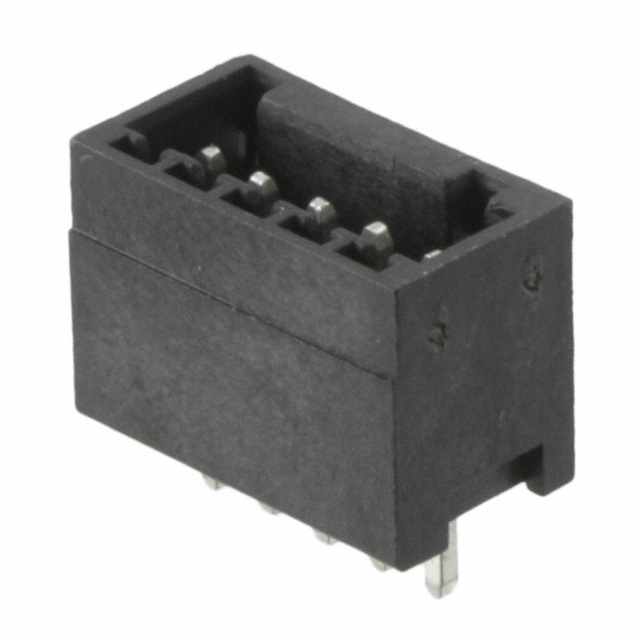

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1963560 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1963560 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1963560 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 5POS VERT 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.756 | $0.736 | $0.688 | $0.633 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.584 | $0.557 | $0.523 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1963560 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS VERT 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60960 pcs | Data sheet | 1963560 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 125V | Voltage - IEC | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | MICRO-COMBICON MCV |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | 1963560-ND 277-9120 MCV 0,5/ 5-G-2,5 THT MCV0,5/5-G-2,5THT |
| Operating Temperature | - | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.398" (10.11mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Through Hole |
| Current - UL | 4A | Current - IEC | 4A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
