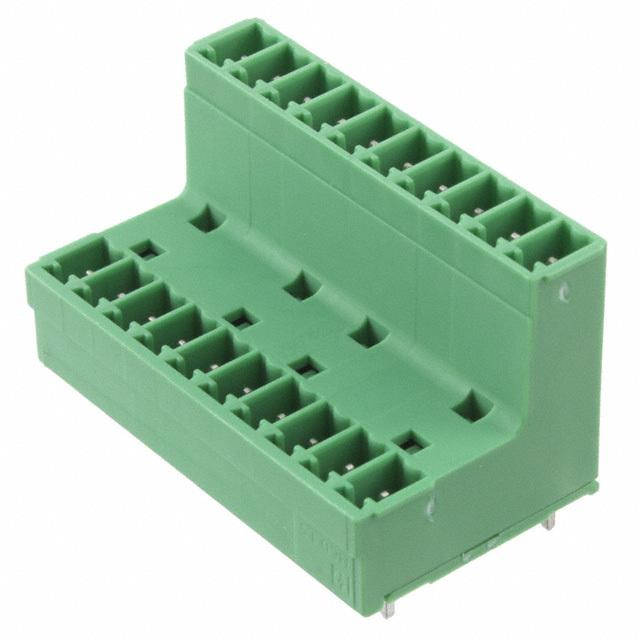

1830486
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1830486 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1830486 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1830486 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 20POS VERT 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.316 | $4.198 | $3.924 | $3.61 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.335 | $3.178 | $2.982 | |||
- Product parameter
Product parameter
| Part Number | 1830486 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 20POS VERT 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10365 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MCDV |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 1830486-ND 277-6492 MCDV 1,5/10-G-3,81 MCDV1,5/10-G-3,81 |
| Operating Temperature | - | Number of Positions | 20 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.862" (21.89mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | 0.134" (3.40mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
