1688803

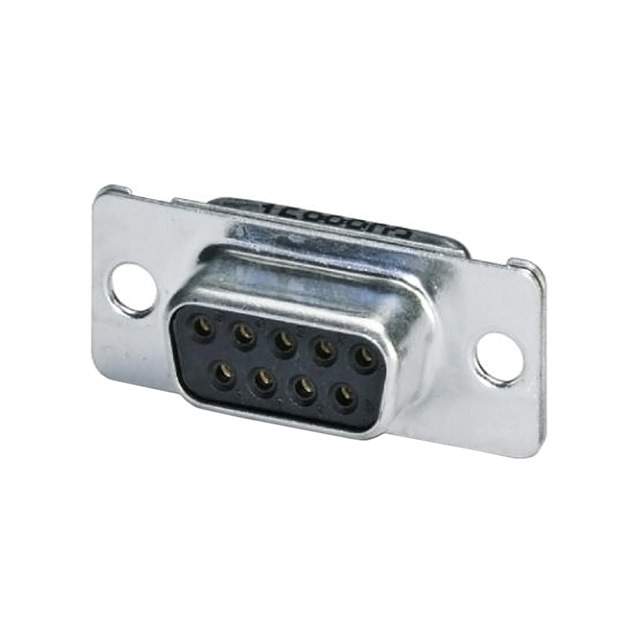

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1688803 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1688803 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1688803 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN DSUB RCPT 9POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $2.386 | $2.195 | $2.028 | $1.933 | $1.813 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1688803 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16906 pcs | Data sheet | 1688803 DatasheetVARIOSUB D-Sub 9 |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | 125V | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | PLUSCON | Packaging | Bulk |
| Other Names | 1688803-ND 277-13673 VS-09-BU-DSUB-EG VS09BUDSUBEG |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
