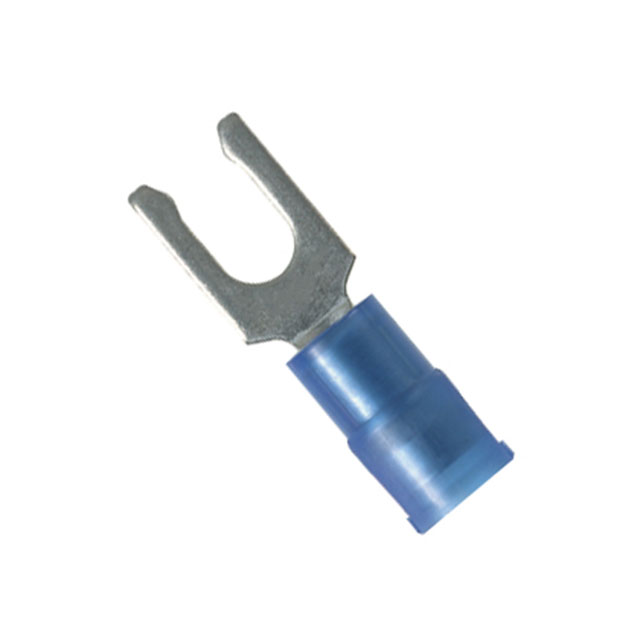

PNF14-10LF-C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PNF14-10LF-C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PNF14-10LF-C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PNF14-10LF-C |
|---|---|
| Manufacturer | Panduit |
| Description | CONN SPADE TERM 14-16AWG #10 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.469 | $0.458 | $0.446 | $0.434 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.422 | $0.411 | $0.387 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PNF14-10LF-C | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN SPADE TERM 14-16AWG #10 BLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87792 pcs | Data sheet | PNF14-xLF(W) Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.330" (8.38mm) | Tongue Inside Opening | 0.190" (4.83mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 298-15528 PNF14-10LF-C-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | - | Length - Ring Center to Termination | - |
| Length - Overall | 0.930" (23.62mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.162" (4.11mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Blue |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
