Home > Products > Connectors, Interconnects > Terminals - Rectangular Connectors > LCDX2/0-56D-X

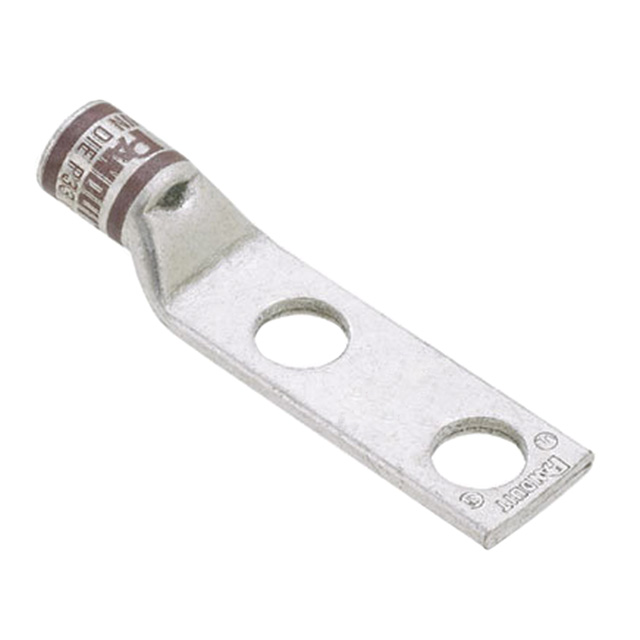

LCDX2/0-56D-X

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LCDX2/0-56D-X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LCDX2/0-56D-X
Manufacturer	Panduit
Description	CONN TERM RECT TONG 2/0AWG #5/16
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	500 pcs	1000 pcs
~~In Stock~~ 6760 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.144	$5.977	$5.811	$5.645
	$5.479	$5.313	$5.147

Product parameter
Data sheet

Product parameter

Part Number	LCDX2/0-56D-X	Manufacturer	Panduit
Description	CONN TERM RECT TONG 2/0AWG #5/16	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6760 pcs	Data sheet	LCDX Series DataSheet LCDX2/0-56D-X Drawing
Category	Connectors, Interconnects	Wire Gauge	2/0 AWG
Width - Outer Edges	0.960" (24.38mm)	Termination	Crimp, Barrel
Terminal Type	Rectangular Tongue	Terminal Style	Two Stud Holes
Tab Thickness	0.130" (3.30mm)	Stud/Tab Size	5/16 Stud
Series	Pan-Lug®	Packaging	Bulk
Other Names	07498342776 298-11836 LCDX2/0-56D-X-ND	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	4 Weeks
Length - Overall	2.960" (75.18mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation	Non-Insulated	Features	-
Diameter - Ring ID	0.340" (8.64mm)	Diameter - Barrel OD	0.640" (16.26mm)
Diameter - Barrel ID	0.510" (12.95mm)	Detailed Description	Terminal Connector Rectangular Rectangular Tongue 2/0 AWG 5/16 Stud
Contact Material	Copper	Contact Finish	Electro-Tin
Color	Black

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
