S3EB-12V

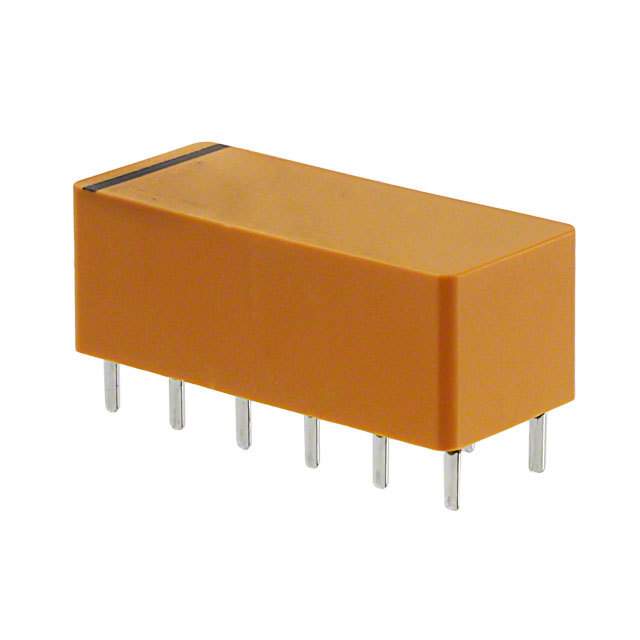

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S3EB-12V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S3EB-12V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S3EB-12V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE 4PST 4A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $5.173 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S3EB-12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PST 4A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6924 pcs | Data sheet | S Series |
| Category | Relays | Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 48VDC - Max | Series | S |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-1887 S3EB-12V-ND S3EB12V |
| Operating Temperature | -55°C ~ 65°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Amber |
| Detailed Description | General Purpose Relay 4PST-3NO/1NC (3 Form A, 1 Form B) 12VDC Coil Through Hole | Contact Rating (Current) | 4A |
| Contact Material | Silver Alloy, Cadmium Free | Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 720 Ohms | Coil Power | 200 mW |
| Coil Current | 16.7mA |
