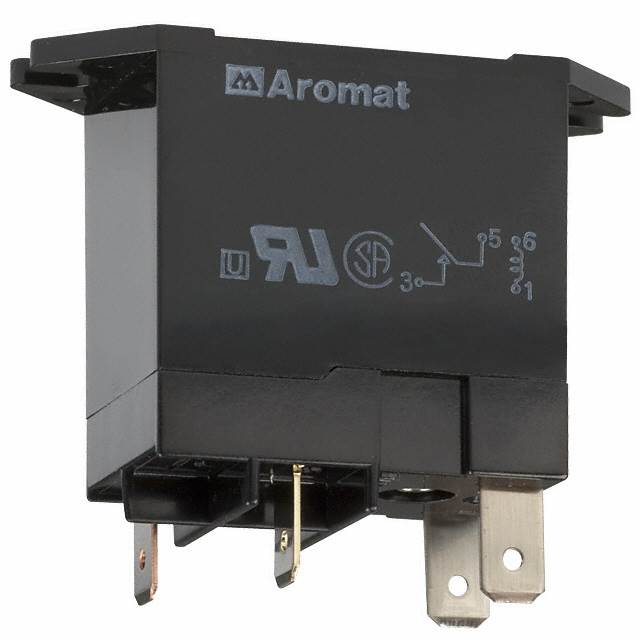

JC1AF-TM-DC9V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JC1AF-TM-DC9V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JC1AF-TM-DC9V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JC1AF-TM-DC9V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 15A 9V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JC1AF-TM-DC9V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 15A 9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4124 pcs | Data sheet | JC Relays |
| Category | Relays | Turn On Voltage (Max) | 7.2 VDC |
| Turn Off Voltage (Min) | 0.9 VDC | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 250VAC - Max | Series | JC |
| Release Time | 2ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -50°C ~ 60°C |
| Operate Time | 15ms | Mounting Type | Chassis Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Chassis Mount | Contact Rating (Current) | 15A |
| Contact Material | Silver Alloy | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 9VDC | Coil Type | Non Latching |
| Coil Resistance | 90 Ohms | Coil Power | 900 mW |
| Coil Current | 100mA |
