ELL-VEG330M

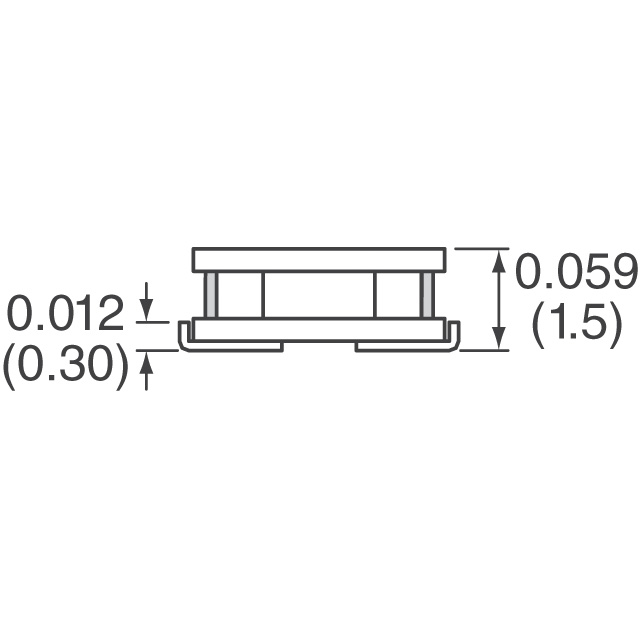

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-VEG330M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-VEG330M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-VEG330M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 33UH 290MA 2.3 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-VEG330M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 33UH 290MA 2.3 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5245 pcs | Data sheet | G Series, Type ELL-VxG Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | PCD2284TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 33µH | Height - Seated (Max) | 0.039" (1.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 33µH Shielded Wirewound Inductor 290mA 2.3 Ohm Nonstandard |
| DC Resistance (DCR) | 2.3 Ohm | Current Rating | 290mA |
| Current - Saturation | 260mA |
