ELF-25F116A

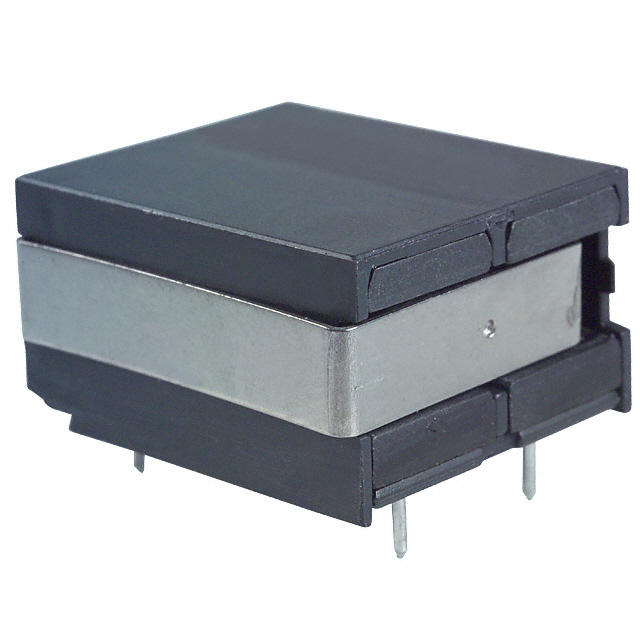

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-25F116A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-25F116A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-25F116A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 1.6A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-25F116A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1.6A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4473 pcs | Data sheet | F Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.102" L x 0.984" W (28.00mm x 25.00mm) |
| Series | F | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF25F116A PLK1059 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.591" (15.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 1.6A DCR 199 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 199 mOhm (Typ) | Current Rating (Max) | 1.6A |
| Approvals | - |
