ELF-18D656X

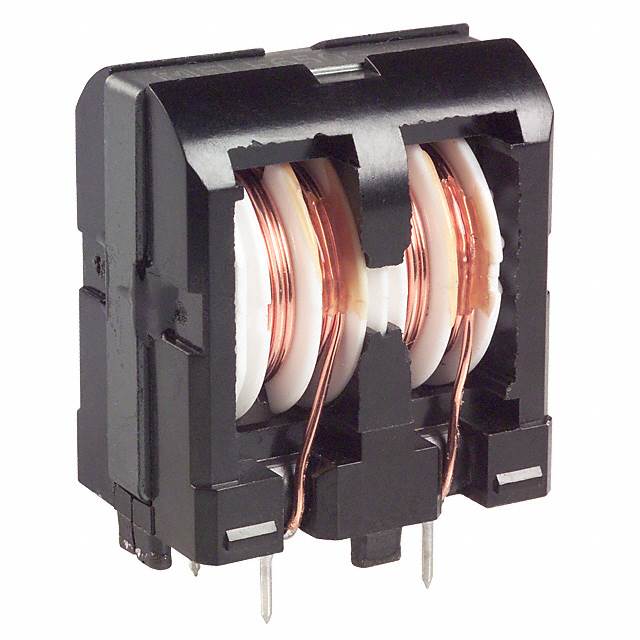

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-18D656X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-18D656X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-18D656X |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 2.2A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-18D656X | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 2.2A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4837 pcs | Data sheet | V Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.142" L x 0.827" W (29.00mm x 21.00mm) |
| Series | V | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF18D656X PLK1228 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 1.362" (34.60mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 2.2A DCR 111 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 111 mOhm (Typ) | Current Rating (Max) | 2.2A |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
