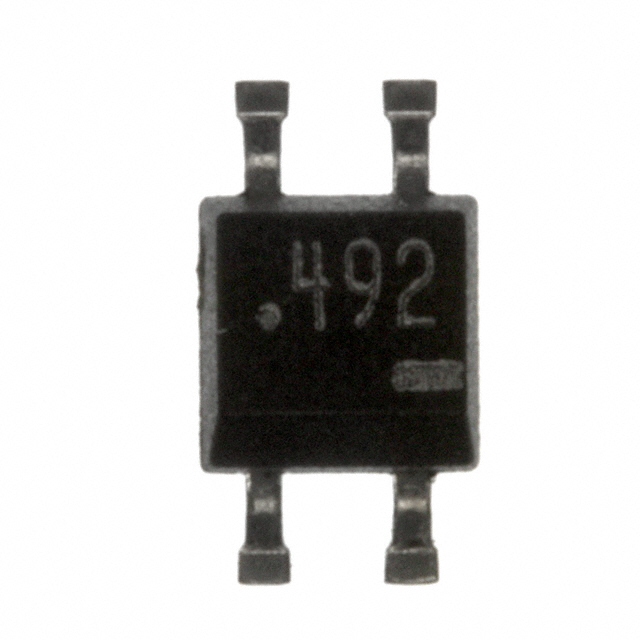

DN6849S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DN6849S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DN6849S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DN6849S |
|---|---|
| Manufacturer | Panasonic |
| Description | MAGNETIC SWITCH BIPOLAR 4ESOP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DN6849S | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MAGNETIC SWITCH BIPOLAR 4ESOP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4676 pcs | Data sheet | DN6849(SE,S) |
| Category | Sensors, Transducers | Voltage - Supply | 4.5 V ~ 16 V |
| Test Condition | 25°C | Technology | Hall Effect |
| Supplier Device Package | 4-ESOP | Series | - |
| Sensing Range | -17mT Trip, 17.5mT Release | Polarization | North Pole |
| Packaging | Bulk | Package / Case | 4-SMD, Gull Wing |
| Output Type | Open Collector | Operating Temperature | -40°C ~ 100°C (TA) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Function | Bipolar Switch | Features | Temperature Compensated |
| Detailed Description | Digital Switch Bipolar Switch Open Collector Hall Effect 4-ESOP | Current - Supply (Max) | 6mA |
| Current - Output (Max) | 10µA |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
