AH168061-A

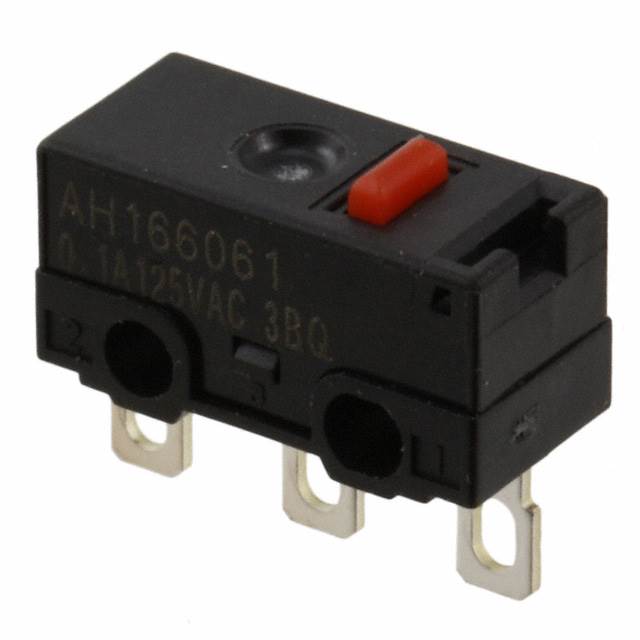

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH168061-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH168061-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH168061-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.557 | $0.527 | $0.506 | $0.485 | $0.464 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.369 | $0.337 | $0.327 | $0.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH168061-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74516 pcs | Data sheet | AH1 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | AH1 |
| Release Force | 10gf | Pretravel | 0.020" (0.5mm) |
| Packaging | Tube | Overtravel | 0.010" (0.25mm) |
| Other Names | 255-4107-5 AH168061-A-ND AH168061A |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.217" (5.5mm) | Operating Force | 74gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 100,000 Cycles |
| Differential Travel | 0.005" (0.12mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
