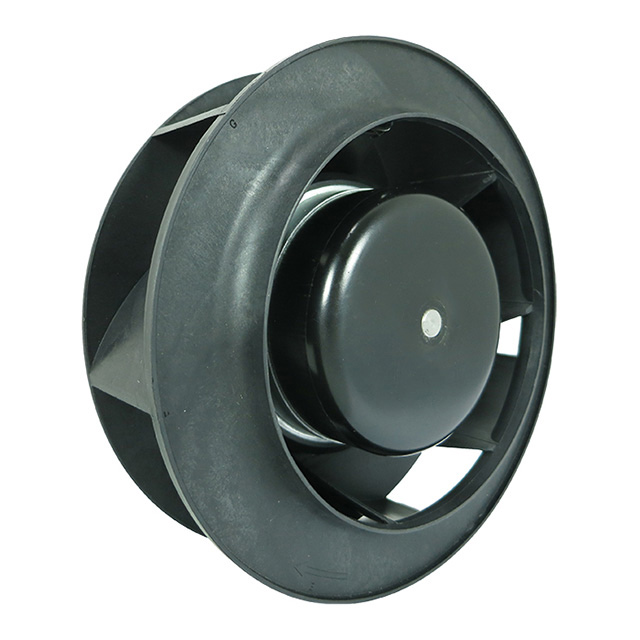

ODB19069-24HB10A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ODB19069-24HB10A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ODB19069-24HB10A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ODB19069-24HB10A |
|---|---|
| Manufacturer | Orion Fans |
| Description | FAN IMP MTRZD 189.5X68.5MM 24VDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $40.072 | $36.065 | $35.531 | $32.592 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ODB19069-24HB10A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN IMP MTRZD 189.5X68.5MM 24VDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1117 pcs | Data sheet | ODB19069 Series Datasheet |
| Category | Fans, Thermal Management | Width | 68.50mm |
| Weight | 2.205 lb (1kg) | Voltage Range | 16 ~ 28VDC |
| Voltage - Rated | 24VDC | Termination | 4 Wire Leads |
| Static Pressure | 2.000 in H2O (498.2 Pa) | Size / Dimension | Round - 189.5mm Dia |
| Series | - | RPM | 3200 RPM |
| Power (Watts) | 108W | Other Names | 1053-1796 ODB19069-24HB10AX |
| Operating Temperature | 14 ~ 149°F (-10 ~ 65°C) | Noise | 75.0 dB |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material - Frame | Aluminum |
| Material - Blade | Thermoplastic | Manufacturer Standard Lead Time | 12 Weeks |
| Lifetime @ Temp. | 40000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | PWM Control, Speed Sensor (Tach) |
| Fan Type | Motorized Impellers | Current Rating | 4.5A |
| Bearing Type | Ball | Approvals | CE, cURus, TUV, UR |
| Air Flow | 395.0 CFM (11.06m³/min) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
