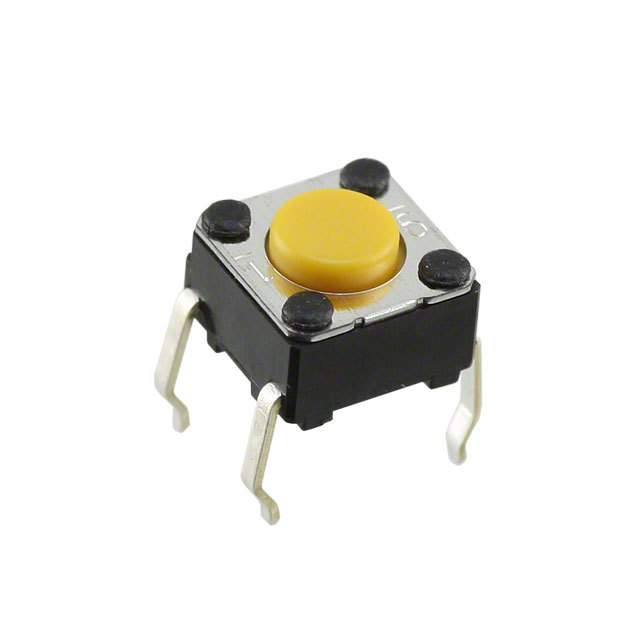

B3F-1002S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B3F-1002S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B3F-1002S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B3F-1002S |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | 180 pcs |
|---|---|---|---|---|---|
| $0.179 | $0.172 | $0.169 | $0.162 | $0.14 | |
| 270 pcs | 540 pcs | 1080 pcs | 5040 pcs | ||
| $0.127 | $0.121 | $0.095 | $0.089 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B3F-1002S | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 265165 pcs | Data sheet | B3F Series April 2001 |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | B3F | Packaging | Tube |
| Outline | 6.00mm x 6.00mm | Other Names | B3F-1002S-ND B3F1002S SW1234 |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 150gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 300,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 4.30mm |
