Home > Products > Switches > Pushbutton Switches > A22RL-TG-24A-10M

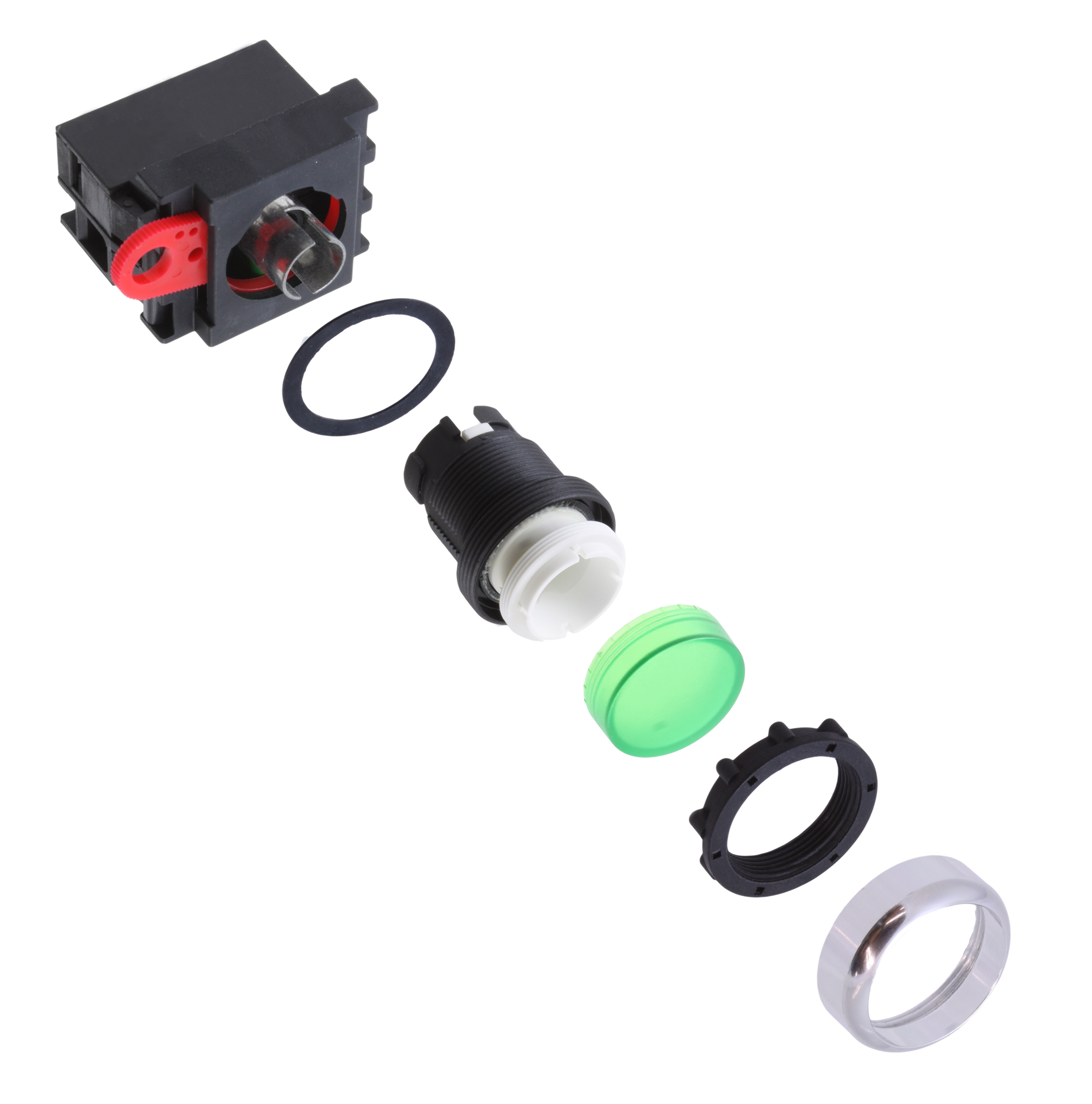

A22RL-TG-24A-10M

A22RL-TG-24A-10M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A22RL-TG-24A-10M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A22RL-TG-24A-10M
Manufacturer	Omron Automation & Safety
Description	SWITCH PUSH SPST-NO 10A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4924 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	A22RL-TG-24A-10M	Manufacturer	Omron Automation & Safety
Description	SWITCH PUSH SPST-NO 10A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4924 pcs	Data sheet	A22R/M22R Series
Category	Switches	Voltage Rating - AC	120V
Type	Standard, Illuminated	Termination Style	Screw Terminal
Switch Function	Off-Mom	Series	A22RL
Panel Cutout Dimensions	Circular - 22.30mm Dia	Packaging	Bulk
Other Names	A22RLTG24A10M SW1336	Operating Temperature	-20°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	3,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	24 VAC/DC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	500,000 Cycles	Detailed Description	Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Current Rating	10A (AC)	Color - Actuator/Cap	Green
Circuit	SPST-NO	Actuator Type	Round, Button
