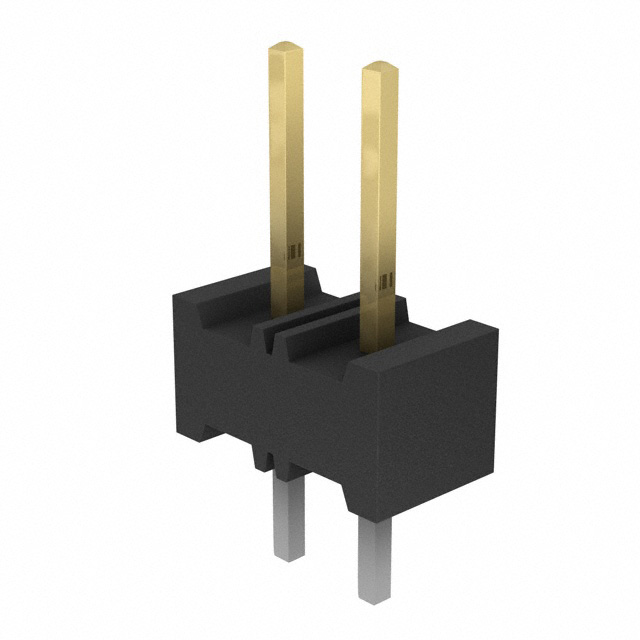

26630201RP2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 26630201RP2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 26630201RP2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 26630201RP2 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN HDR 2MM MALE 1ROW STR 2POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.269 | $0.234 | $0.198 | $0.158 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.128 | $0.117 | $0.113 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 26630201RP2 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN HDR 2MM MALE 1ROW STR 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 212070 pcs | Data sheet | 2663yy01RP2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | 2663 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.327" (8.30mm) |
| Other Names | 2663S-02 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
