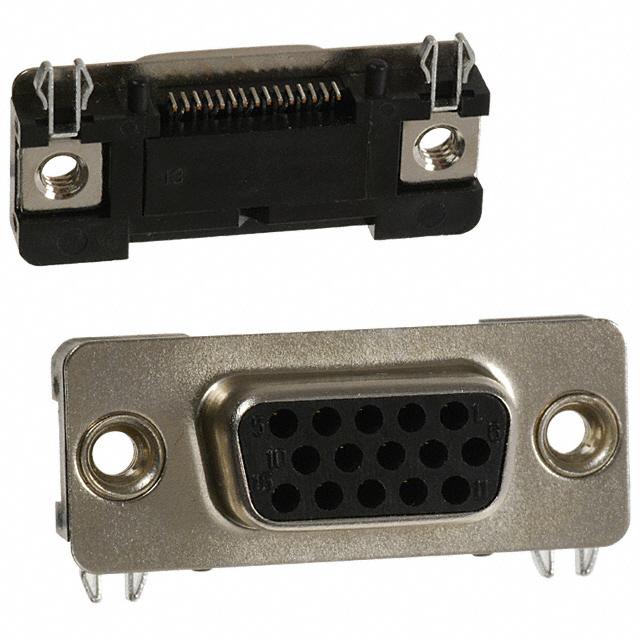

200-015-263R001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 200-015-263R001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 200-015-263R001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 200-015-263R001 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB HD RCPT 15POS SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | 105 pcs |
|---|---|---|---|---|---|
| $1.345 | $1.291 | $1.183 | $1.129 | $1.076 | |
| 255 pcs | 510 pcs | 1005 pcs | 2505 pcs | ||
| $0.941 | $0.914 | $0.78 | $0.726 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 200-015-263R001 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 15POS SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42071 pcs | Data sheet | Backshell Reference Guide200-015-263R001 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 300V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | 200 | Packaging | Tube |
| Other Names | 200-15FA 200015263R001 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Surface Mount, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Shielded |
| Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 2A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
