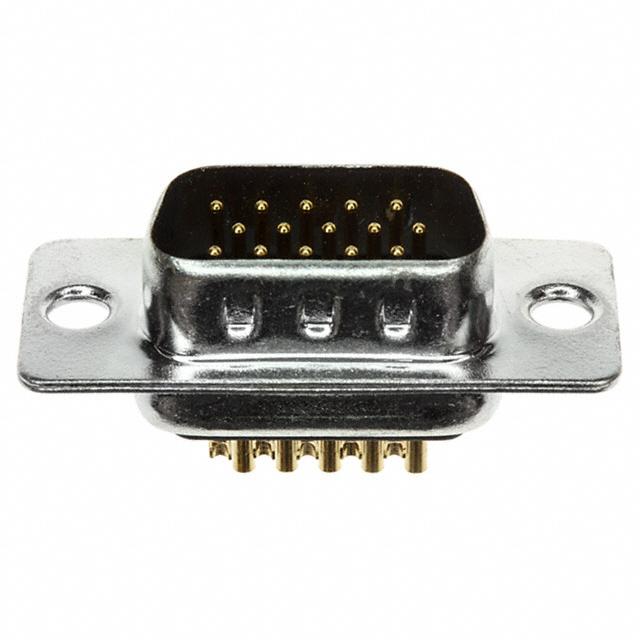

180-M15-103L001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 180-M15-103L001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 180-M15-103L001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 180-M15-103L001 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB HD PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 110 pcs |
|---|---|---|---|---|---|
| $1.31 | $1.258 | $1.153 | $1.101 | $1.048 | |
| 330 pcs | 550 pcs | 1100 pcs | 2530 pcs | ||
| $0.917 | $0.891 | $0.76 | $0.708 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 180-M15-103L001 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42827 pcs | Data sheet | 180-Myy-10yLyyy |
| Category | Connectors, Interconnects | Wire Gauge | 24-28 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | 180-M, M Series | Packaging | Tray |
| Other Names | 180-M1501MN 180M15103L001 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents, Shielded | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | Machined |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
