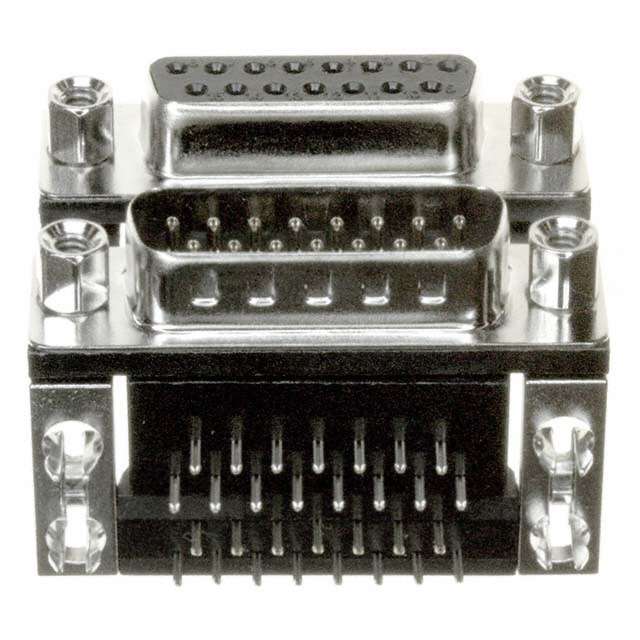

178-015-313R571
![178-015-313R571](/thumb/medium/dd/178-015-313R571.jpg)
![](/upfile/linecard/medium_NorComp.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 178-015-313R571 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 178-015-313R571 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 178-015-313R571 |
---|---|
Manufacturer | NorComp |
Description | CONN D-SUB PLUG/RCPT 15POS R/A |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 35 pcs | 70 pcs | |
---|---|---|---|---|---|
$3.333 | $3.188 | $2.898 | $2.753 | ||
105 pcs | 280 pcs | 525 pcs | 1015 pcs | ||
$2.681 | $2.391 | $2.246 | $1.985 |
- Product parameter
- Data sheet
Product parameter
Part Number | 178-015-313R571 | Manufacturer | NorComp |
---|---|---|---|
Description | CONN D-SUB PLUG/RCPT 15POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 16641 pcs | Data sheet | 178-yyy-313R571Backshell Reference Guide |
Category | Connectors, Interconnects | Wire Gauge | - |
Voltage Rating | - | Termination | Solder |
Shell Size, Connector Layout | 2 (DA, A); 2 (DA, A) | Shell Material, Finish | Steel, Nickel Plated |
Series | 178 | Packaging | Tray |
Other Names | 1115FME 178015313R571 |
Operating Temperature | -55°C ~ 105°C |
Number of Rows | 2, 2 | Number of Positions | 15, 15 |
Mounting Type | Panel Mount, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Housing Material | Polyamide (PA9T), Nylon 9T |
Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock, Grounding Indents, Shielded |
Detailed Description | 15, 15 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector | Current Rating | 5A |
Contact Type | Signal | Contact Material | - |
Contact Form | Stamped | Contact Finish Thickness | Flash |
Contact Finish | Gold | Connector Type | Plug, Male Pins; Receptacle, Female Sockets |
Connector Style | D-Sub - Stacked | Color | Black |
Backset Spacing | 0.318" (8.08mm) |
