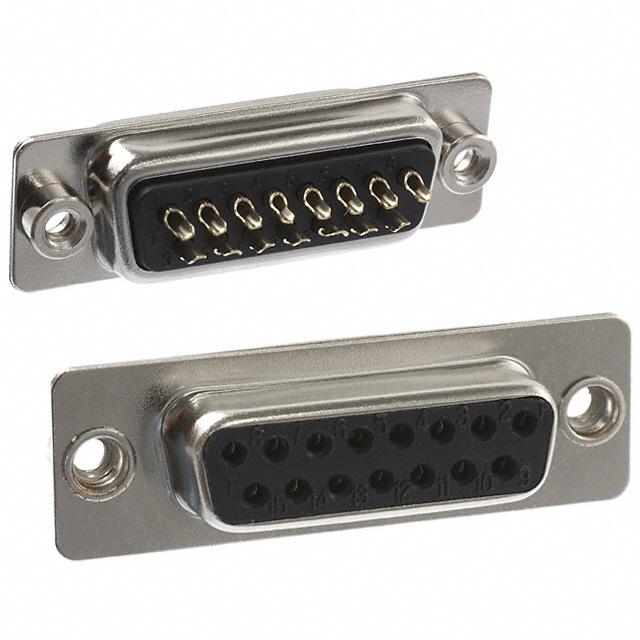

171-015-203L011
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 171-015-203L011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 171-015-203L011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 171-015-203L011 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN D-SUB RCPT 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.892 | $0.81 | $0.76 | $0.727 | $0.694 | |
| 300 pcs | 540 pcs | 1020 pcs | 2520 pcs | ||
| $0.628 | $0.578 | $0.496 | $0.463 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 171-015-203L011 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80948 pcs | Data sheet | 171-yyy-20yLyy1 Drawing~Backshell Reference Guide |
| Category | Connectors, Interconnects | Wire Gauge | 20-28 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Nickel Plated |
| Series | 171 | Packaging | Tray |
| Other Names | 1215FE 171015203L011 |
Operating Temperature | -50°C ~ 100°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Cable Side (4-40) |
| Features | - | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | - | Contact Form | Stamped |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
