Home > Products > Capacitors > Aluminum - Polymer Capacitors > PCR1D681MCL1GS

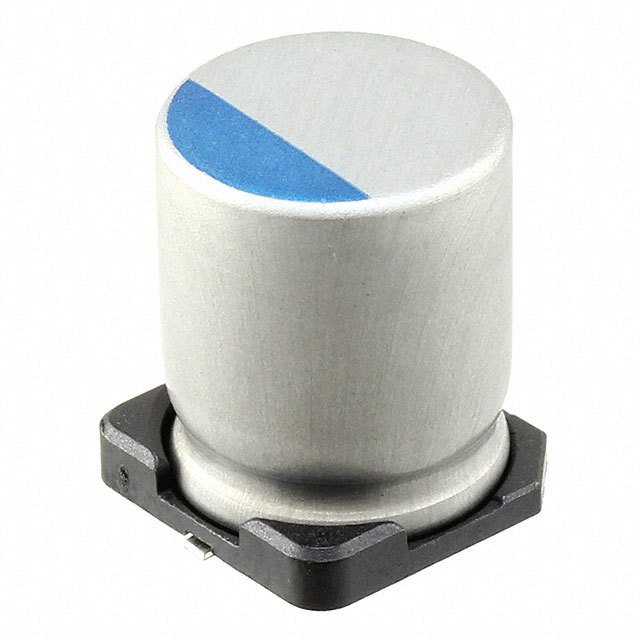

PCR1D681MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCR1D681MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Dowload PCR1D681MCL1GS Details in PDF

Request a Quote

Part Number	PCR1D681MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM POLY 680UF 20% 20V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 60799 pcs
Reference Price (In US Dollars)	400 pcs	800 pcs	1200 pcs	2000 pcs	4000 pcs
Reference Price (In US Dollars)	$0.619	$0.532	$0.522	$0.503	$0.501

Product parameter
Data sheet

Product parameter

Part Number	PCR1D681MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM POLY 680UF 20% 20V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60799 pcs	Data sheet	Chip Type Tape Spec PCR Series Polymer Aluminum Land, Reflow
Category	Capacitors	Voltage - Rated	20V
Type	Polymer	Tolerance	±20%
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)	Size / Dimension	0.394" Dia (10.00mm)
Series	PCR	Ripple Current @ High Frequency	4.2A @ 100kHz
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Radial, Can - SMD	Other Names	493-13747-2
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lifetime @ Temp.	4000 Hrs @ 125°C	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.504" (12.80mm)
ESR (Equivalent Series Resistance)	14 mOhm	Detailed Description	680µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 14 mOhm 4000 Hrs @ 125°C
Capacitance	680µF	Applications	General Purpose
