Home > Products > Capacitors > Aluminum Electrolytic Capacitors > LGU2F561MELB

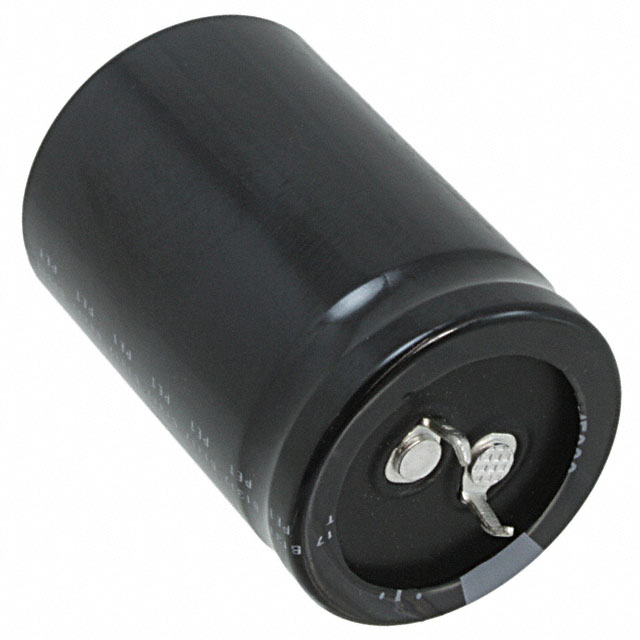

LGU2F561MELB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LGU2F561MELB with confidence from Components-World.HK, 1 Year Warranty

Dowload LGU2F561MELB Details in PDF

Request a Quote

Part Number	LGU2F561MELB
Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 315V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 23908 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$2.466	$2.192	$1.753	$1.507	$1.419

Product parameter
Data sheet

Product parameter

Part Number	LGU2F561MELB	Manufacturer	Nichicon
Description	CAP ALUM 560UF 20% 315V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23908 pcs	Data sheet	LGU Series Snap-In Terminal, Terminal-Shape
Category	Capacitors	Voltage - Rated	315V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	1.181" Dia (30.00mm)	Series	LGU
Ripple Current @ Low Frequency	2.05A @ 120Hz	Ripple Current @ High Frequency	2.9315A @ 50kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can - Snap-In
Other Names	493-8509 LGU2F561MELB-ND	Operating Temperature	-25°C ~ 105°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	31 Weeks	Lifetime @ Temp.	3000 Hrs @ 105°C
Lead Spacing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.850" (47.00mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	560µF 315V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C	Capacitance	560µF
Applications	General Purpose
