Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG3015EH,115

PMEG3015EH,115

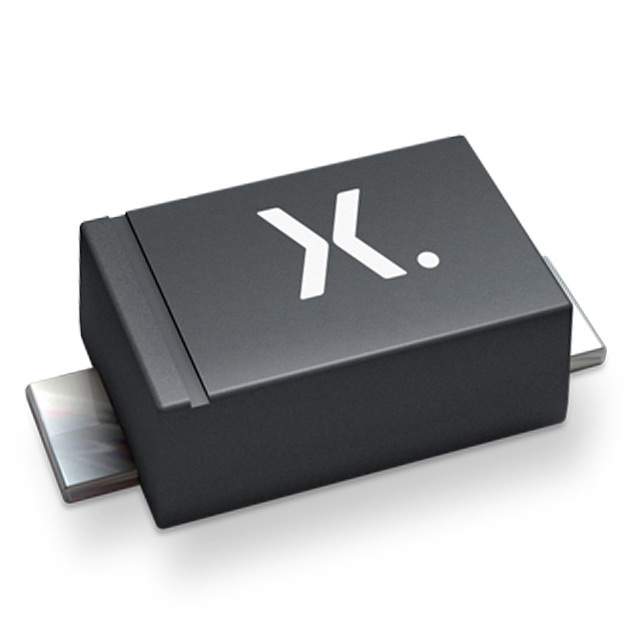

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3015EH,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3015EH,115
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1.5A SOD123F
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 707113 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.04	$0.038	$0.036	$0.033

Product parameter
Data sheet

Product parameter

Part Number	PMEG3015EH,115	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1.5A SOD123F	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	707113 pcs	Data sheet	PMEG3015E(H,J)
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	550mV @ 1.5A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	SOD-123F
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-123F
Other Names	1727-3871-2 568-4127-2 568-4127-2-ND 934059277115 PMEG3015EH T/R PMEG3015EH T/R-ND	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 1.5A (DC) Surface Mount SOD-123F	Current - Reverse Leakage @ Vr	1mA @ 30V
Current - Average Rectified (Io)	1.5A (DC)	Capacitance @ Vr, F	72pF @ 1V, 1MHz
Base Part Number	PMEG3015
