PMCM4401UNEZ

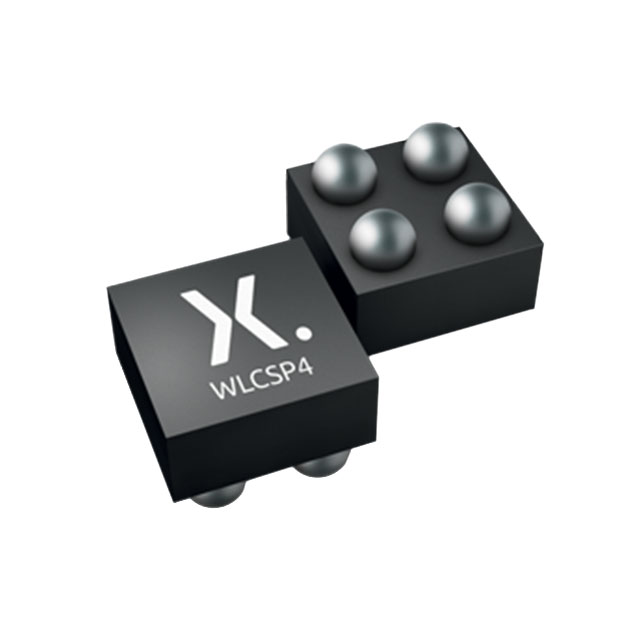

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMCM4401UNEZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PMCM4401UNEZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PMCM4401UNEZ |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CHANNEL 20V 4WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.194 | $0.152 | $0.104 | $0.072 | $0.054 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PMCM4401UNEZ | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 20V 4WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 432326 pcs | Data sheet | PMCM4401UNE |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 4-WLCSP (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | - | Power Dissipation (Max) | 400mW |
| Packaging | Cut Tape (CT) | Package / Case | 4-XFBGA, WLCSP |
| Other Names | 1727-7624-1 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gate Charge (Qg) (Max) @ Vgs | 6.2nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | N-Channel 20V 400mW Surface Mount 4-WLCSP (2x2) |
| Current - Continuous Drain (Id) @ 25°C | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
