Home > Products > Switches > Pushbutton Switches > YB25SKW01-FB

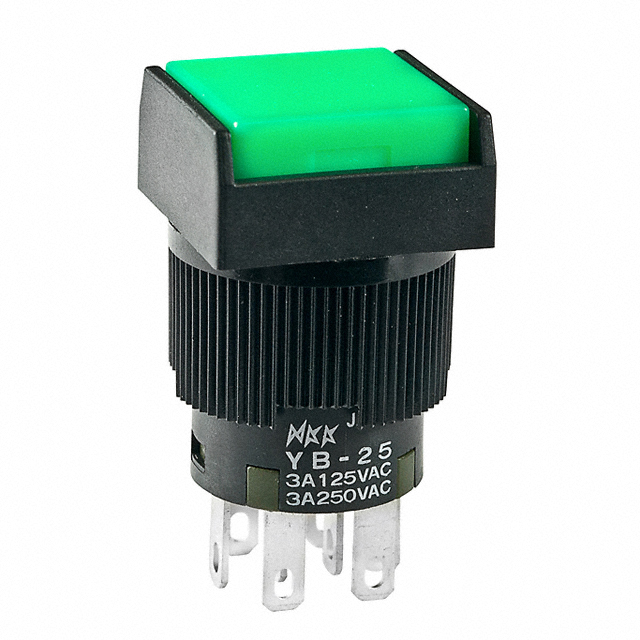

YB25SKW01-FB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YB25SKW01-FB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	YB25SKW01-FB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8283 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.285

Product parameter
Data sheet

Product parameter

Part Number	YB25SKW01-FB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8283 pcs	Data sheet	YB Series Short Body PB
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	YB	Panel Cutout Dimensions	Circular - 16.00mm Dia
Packaging	Bulk	Other Names	YB25SKW01-FB-RO YB25SKW01-FB-RO-ND
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Front
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Green (White Filter/Diffuser)
Circuit	DPDT	Actuator Type	Square, Button
