Home > Products > Switches > Pushbutton Switches > LB16CKW01-12-BJ

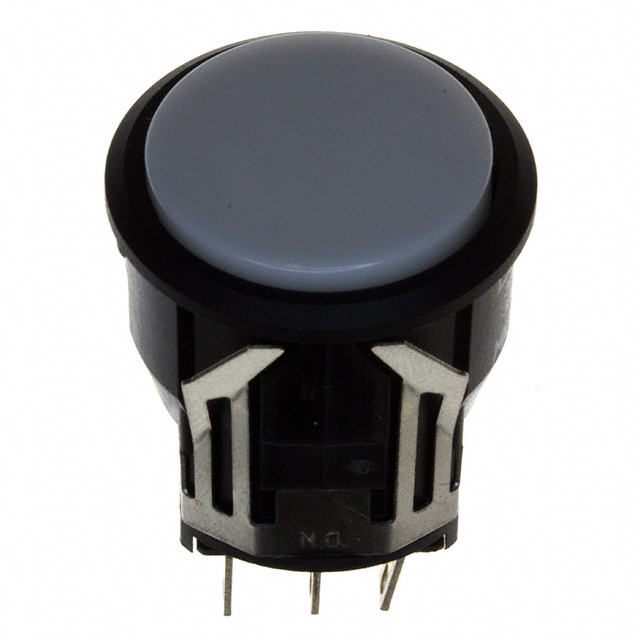

LB16CKW01-12-BJ

LB16CKW01-12-BJ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB16CKW01-12-BJ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB16CKW01-12-BJ
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7924 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.509

Product parameter
Data sheet

Product parameter

Part Number	LB16CKW01-12-BJ	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7924 pcs	Data sheet	LB Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	LB	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	LB16CKW01-12-BJ-RO LB16CKW01-12-BJ-RO-ND Q1664449
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	12 VAC	Illumination Type, Color	Incandescent, White
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	White	Circuit	SPDT
Actuator Type	Round, Button
