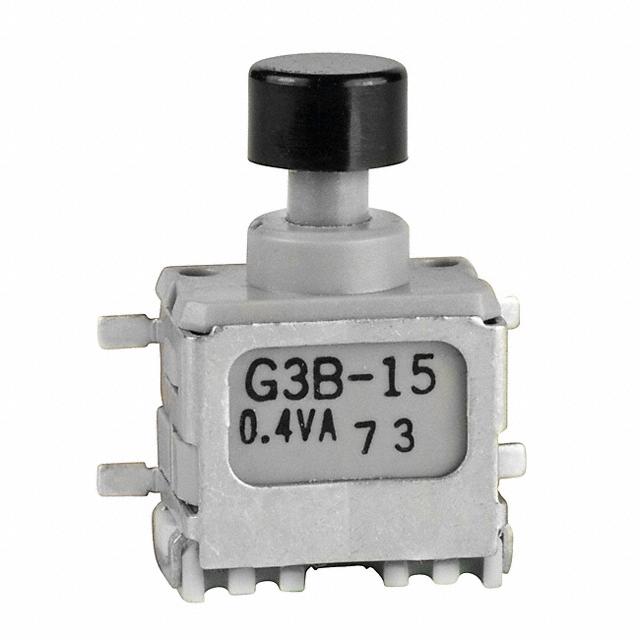

G3B15AH-XA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G3B15AH-XA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G3B15AH-XA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | G3B15AH-XA |
---|---|
Manufacturer | NKK Switches |
Description | SWITCH PUSH SPDT 0.4VA 28V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
---|---|---|---|---|---|
$2.417 | $2.239 | $2.18 | $2.121 | ||
100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
$2.003 | $1.944 | $1.827 | $1.65 |
- Product parameter
- Data sheet
Product parameter
Part Number | G3B15AH-XA | Manufacturer | NKK Switches |
---|---|---|---|
Description | SWITCH PUSH SPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 21856 pcs | Data sheet | G3B Series |
Category | Switches | Voltage Rating - DC | 28V |
Voltage Rating - AC | 28V | Type | Standard |
Termination Style | Gull Wing | Switch Function | On-Mom |
Series | G3B | Panel Cutout Dimensions | - |
Packaging | Tray | Other Names | 360-3983 G3B15AH-XA-ND G3B15AH-XA-RO G3B15AH-XA-RO-ND |
Operating Temperature | -30°C ~ 85°C | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 50,000 Cycles |
Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Illumination Voltage (Nominal) | - |
Illumination Type, Color | - | Features | Process Sealed |
Electrical Life | 50,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard Surface Mount, Right Angle |
Current Rating | 0.4VA (AC/DC) | Color - Actuator/Cap | Black |
Circuit | SPDT | Actuator Type | Round, Button |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
