Home > Products > Switches > Pushbutton Switches > AB25AP-FA

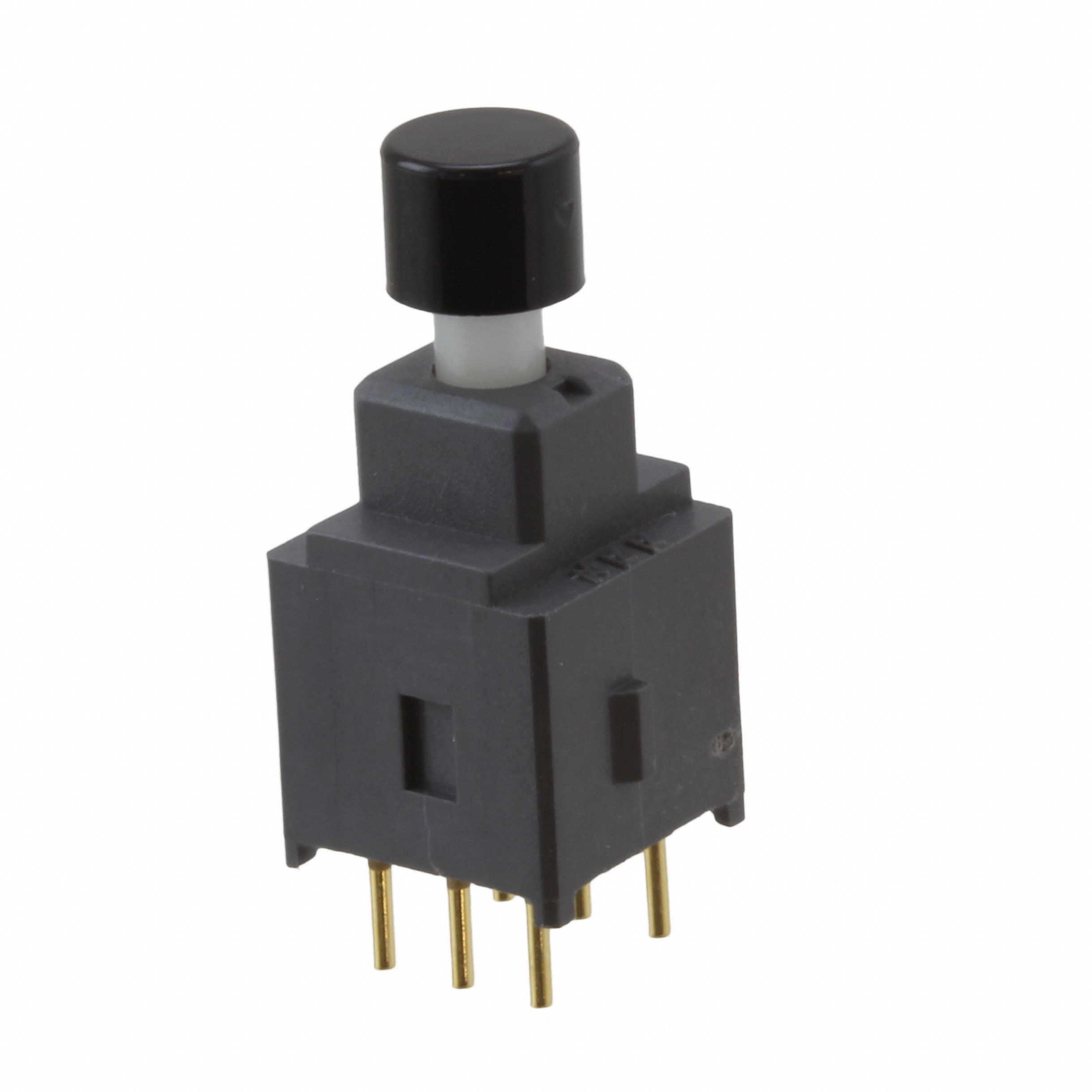

AB25AP-FA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AB25AP-FA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AB25AP-FA
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27223 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.971	$1.877	$1.783	$1.736
	$1.689	$1.595	$1.501	$1.361

Product parameter
Data sheet

Product parameter

Part Number	AB25AP-FA	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27223 pcs	Data sheet	AB Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	AB	Panel Cutout Dimensions	-
Packaging	Tray	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Fully	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Round, Button

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
