Home > Products > Switches > Toggle Switches > A11JP

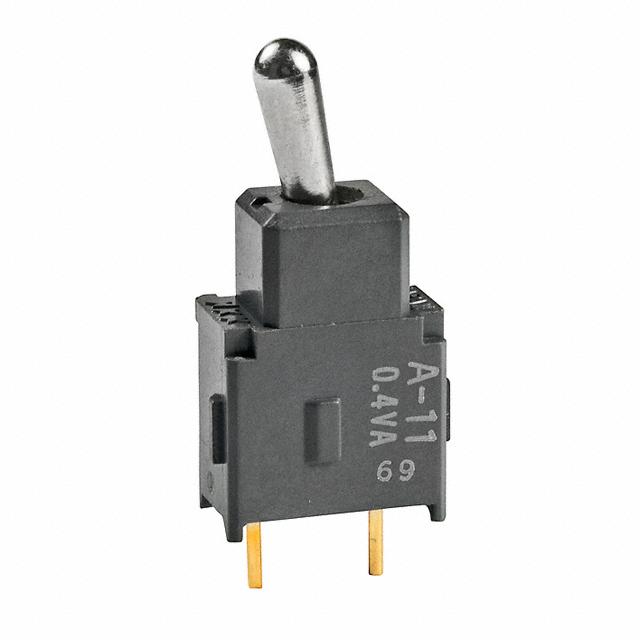

A11JP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A11JP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A11JP
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 43265 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.457	$1.397	$1.337	$1.276
	$1.154	$1.063	$0.972	$0.851

Product parameter
Data sheet

Product parameter

Part Number	A11JP	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPST 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43265 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2973 A11JP-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPST Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPST	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
