9159-0-00-01-00-00-03-0

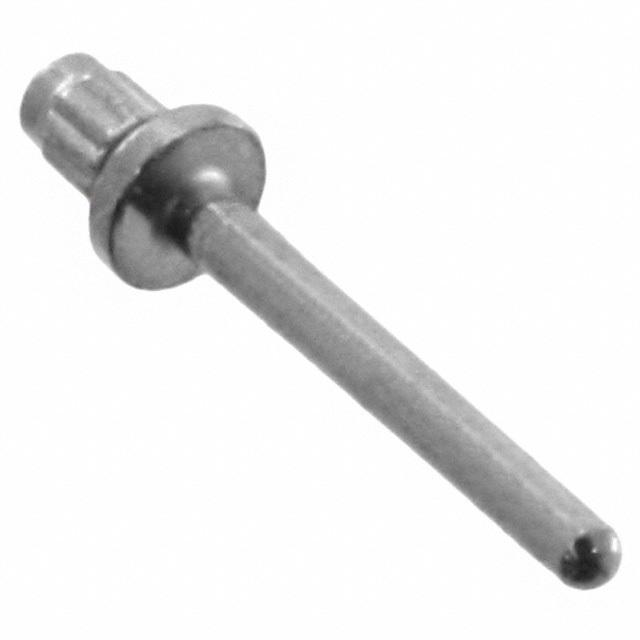

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9159-0-00-01-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9159-0-00-01-00-00-03-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9159-0-00-01-00-00-03-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC .018DIA TINLEAD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.046 | $0.042 | $0.031 | $0.027 | $0.026 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.022 | $0.021 | $0.019 | $0.017 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9159-0-00-01-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC .018DIA TINLEAD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1416655 pcs | Data sheet | Printed Circuit Pins (in.)Printed Circuit Pins (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | 9159 | Pin Size - Below Flange | 0.023" (0.58mm) Dia |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia | Packaging | Bulk |
| Other Names | 9.159E+15 9159000010000030 ED90578 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.026" (0.66mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.211" (5.36mm) | Length - Below Flange | 0.045" (1.14mm) |
| Length - Above Flange | 0.156" (3.96mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.045" (1.14mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin-Lead 0.018" (0.46mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin-Lead | Board Thickness | - |
