851-13-001-10-003000

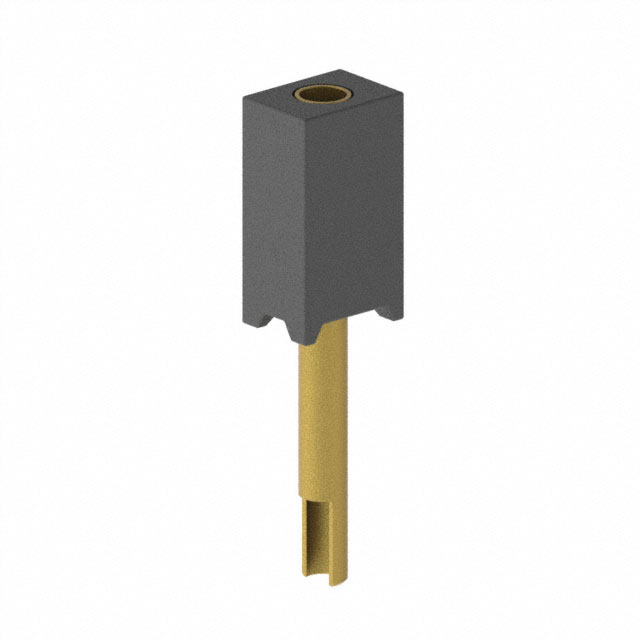

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 851-13-001-10-003000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 851-13-001-10-003000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 851-13-001-10-003000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | SOLDER CUP SOCKET; .050" PITCH; |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.498 | $0.437 | $0.377 | $0.309 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.274 | $0.24 | $0.228 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 851-13-001-10-003000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | SOLDER CUP SOCKET; .050" PITCH; | Lead Free Status / RoHS Status | |
| Quantity Available | 95073 pcs | Data sheet | 850,851,852,853 Series(in)850,851,852,853 Series(metric) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Style | Board to Board |
| Series | 851 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | ED10286 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Insulation Material | Thermoplastic | Insulation Height | 0.159" (4.05mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 1 Position Receptacle Connector Through Hole | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.181" (4.60mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
