801-93-004-61-001000

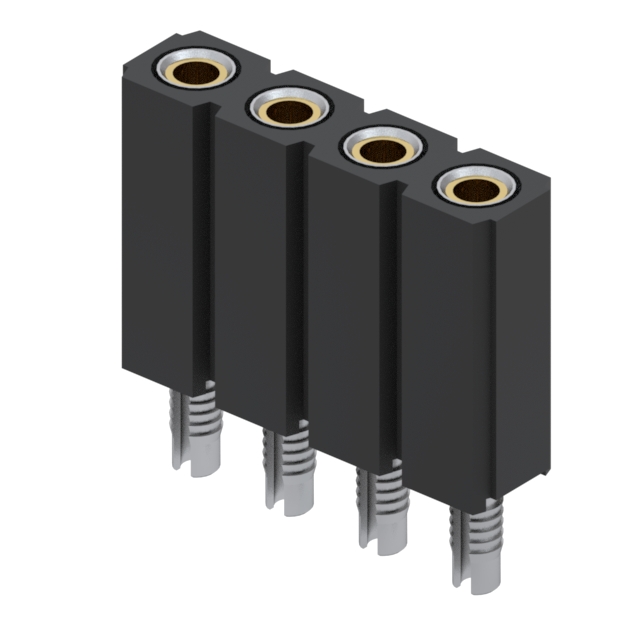

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 801-93-004-61-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 801-93-004-61-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 801-93-004-61-001000 |
---|---|
Manufacturer | Mill-Max |
Description | CONN SOCKET 4POS .100 L.104 |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$1.04 | $0.965 | $0.841 | $0.767 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.705 | $0.643 | $0.618 |
- Product parameter
- Data sheet
Product parameter
Part Number | 801-93-004-61-001000 | Manufacturer | Mill-Max |
---|---|---|---|
Description | CONN SOCKET 4POS .100 L.104 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 50849 pcs | Data sheet | 800, 801 Press-Fit Series (metric)800, 801 Press-Fit Series (in.) |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Press-Fit, Solder | Style | Board to Board |
Series | 801 | Row Spacing - Mating | - |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
Other Names | ED10404 ED10404-ND ED10450-04 |
Operating Temperature | -55°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Insulation Height | 0.276" (7.00mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 4.5A |
Contact Type | Female Socket | Contact Shape | Circular |
Contact Material | Beryllium Copper | Contact Length - Post | 0.104" (2.64mm) |
Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
Connector Type | Receptacle | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
