0338-0-15-15-15-27-10-0

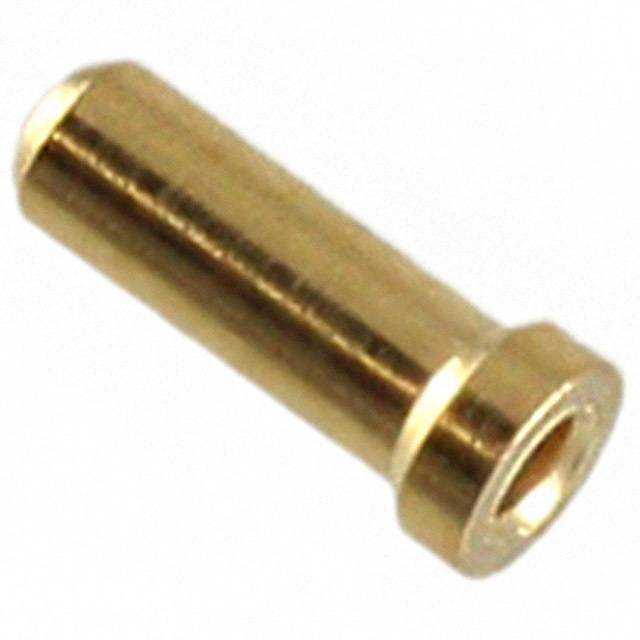

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0338-0-15-15-15-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0338-0-15-15-15-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0338-0-15-15-15-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .020-.032 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.15 | $0.141 | $0.121 | $0.103 | $0.099 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.089 | $0.085 | $0.071 | $0.065 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0338-0-15-15-15-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .020-.032 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 369098 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.147" (3.73mm) | Series | 338 |
| Pin Hole Diameter | 0.047" (1.19mm) | Packaging | Bulk |
| Other Names | 0338-015151527100 0338-015151527100-ND 0338015151527100 3.38015E+14 338015151527100 ED1012 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.057" (1.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.170" (4.32mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.020" ~ 0.032" (0.51mm ~ 0.81mm) |
