Home > Products > Transformers > Switching Converter, SMPS Transformers > 750341026

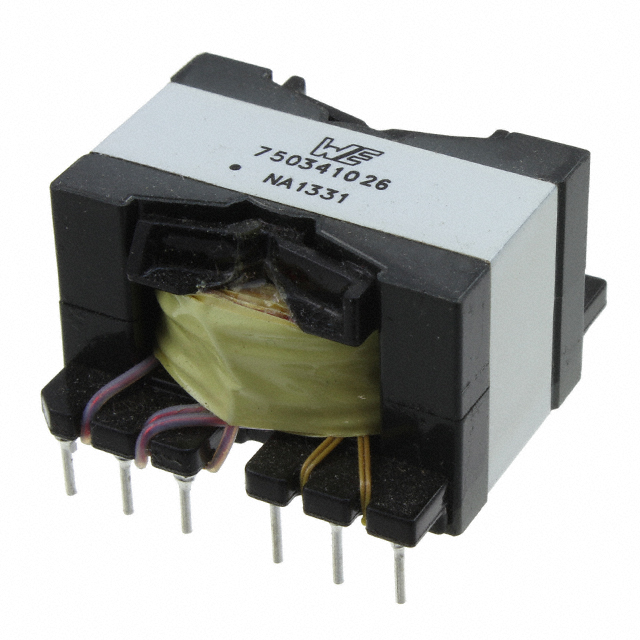

750341026

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750341026 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750341026
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK XFRM WE-FB NXP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5967 pcs
Reference Price (In US Dollars)	16 pcs
Reference Price (In US Dollars)	$5.423

Product parameter
Data sheet

Product parameter

Part Number	750341026	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK XFRM WE-FB NXP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5967 pcs	Data sheet	750341026 Drawing
Category	Transformers	Voltage - Primary	-
Voltage - Isolation	-	Voltage - Auxiliary	-
Type	For AC/DC Converters	Size / Dimension	-
Series	WE-FB	Other Names	1297-1025
Operating Temperature	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	SSL4101
Inductance @ Frequency	710µH @ 10kHz	Height - Seated (Max)	0.865" (21.97mm)
Frequency	-	Footprint	1.339" L x 1.350" W (34.00mm x 34.30mm)
Applications	LED Drivers, AC/DC SMPS
