Home > Products > Transformers > Switching Converter, SMPS Transformers > 750313241

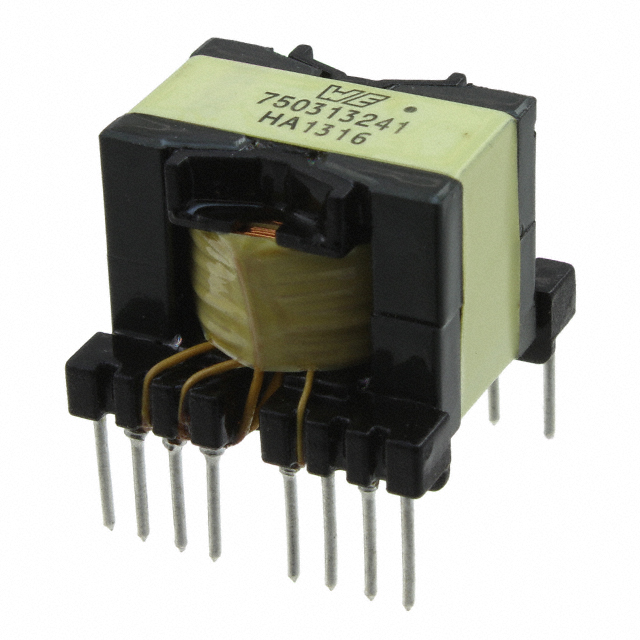

750313241

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750313241 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750313241
Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE XFRM WE-UNIT NXP SSL4101
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 11530 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$3.426

Product parameter
Data sheet

Product parameter

Part Number	750313241	Manufacturer	Midcom / Wurth Electronics
Description	OFFLINE XFRM WE-UNIT NXP SSL4101	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11530 pcs	Data sheet	750313241 Drawing
Category	Transformers	Voltage - Primary	127 ~ 432V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	16V @ 20mA
Type	For AC/DC Converters	Size / Dimension	-
Series	WE-UNIT	Packaging	Tray
Other Names	1297-1024	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	SSL4101	Inductance @ Frequency	3.52mH @ 10kHz
Height - Seated (Max)	0.740" (18.80mm)	Frequency	-
Footprint	0.945" L x 0.945" W (24.00mm x 24.00mm)	Chipset Manufacturer	NXP Semiconductors
Applications	LED Drivers, AC/DC SMPS
