MCP2515-E/ST

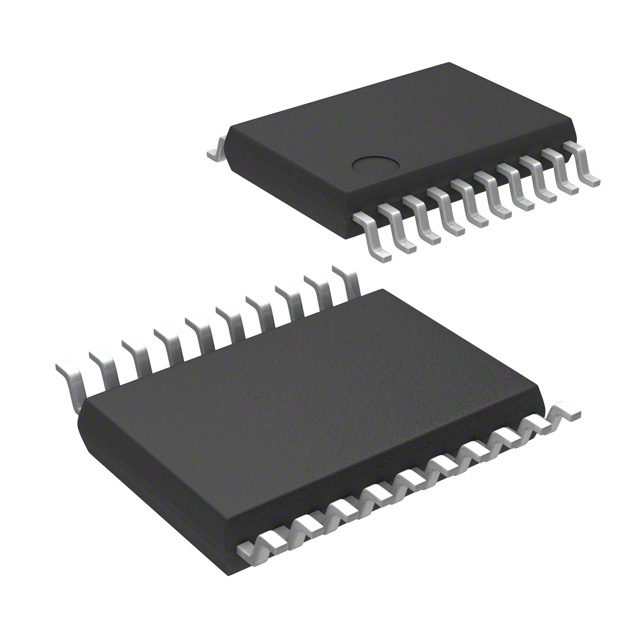

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP2515-E/ST with confidence from Components-World.HK, 1 Year Warranty
Dowload MCP2515-E/ST Details in PDFSee Product Specifications for product details.
Buy MCP2515-E/ST with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCP2515-E/ST |
|---|---|
| Manufacturer | Micrel / Microchip Technology |
| Description | IC CAN CONTROLLER W/SPI 20TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.864 | $0.719 | $0.655 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCP2515-E/ST | Manufacturer | Micrel / Microchip Technology |
|---|---|---|---|
| Description | IC CAN CONTROLLER W/SPI 20TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51032 pcs | Data sheet | Development Tools CatalogMCP2515 DatasheetMCP2515 Rev. B Errata |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 2.7 V ~ 5.5 V |
| Supplier Device Package | 20-TSSOP | Standards | CAN 2.0 |
| Series | - | Protocol | CANbus |
| Packaging | Tube | Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Other Names | MCP2515EST | Operating Temperature | -40°C ~ 125°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | SPI |
| Function | Controller | Detailed Description | CANbus Controller CAN 2.0 SPI Interface 20-TSSOP |
| Current - Supply | 10mA | Base Part Number | MCP2515 |
