Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX1797EVKIT

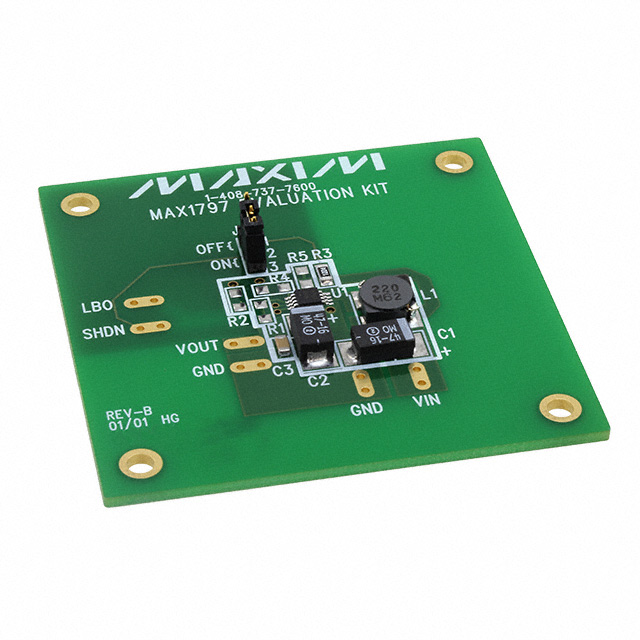

MAX1797EVKIT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX1797EVKIT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX1797EVKIT
Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX1797
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 1387 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$23.68

Product parameter
Data sheet

Product parameter

Part Number	MAX1797EVKIT	Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX1797	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1387 pcs	Data sheet	MAX1797 Eval Kit MAX1795-97
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	2 V ~ 3.3 V	Utilized IC / Part	MAX1797
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Frequency - Switching	-	Detailed Description	MAX1797 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Current - Output	500mA	Board Type	Fully Populated

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
