Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX15462AEVKIT#

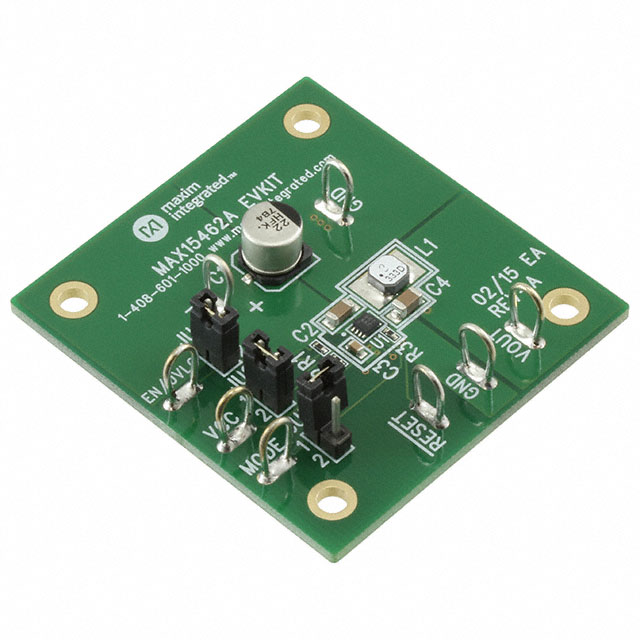

MAX15462AEVKIT#

MAX15462AEVKIT#

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX15462AEVKIT# with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX15462AEVKIT#
Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX15462
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2693 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$11.582

Product parameter
Data sheet

Product parameter

Part Number	MAX15462AEVKIT#	Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX15462	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2693 pcs	Data sheet	MAX15462A Eval Kit MAX15462
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	4.5 V ~ 42 V	Utilized IC / Part	MAX15462
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	500kHz	Detailed Description	MAX15462 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	300mA	Board Type	Fully Populated

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
