Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX15049EVKIT+

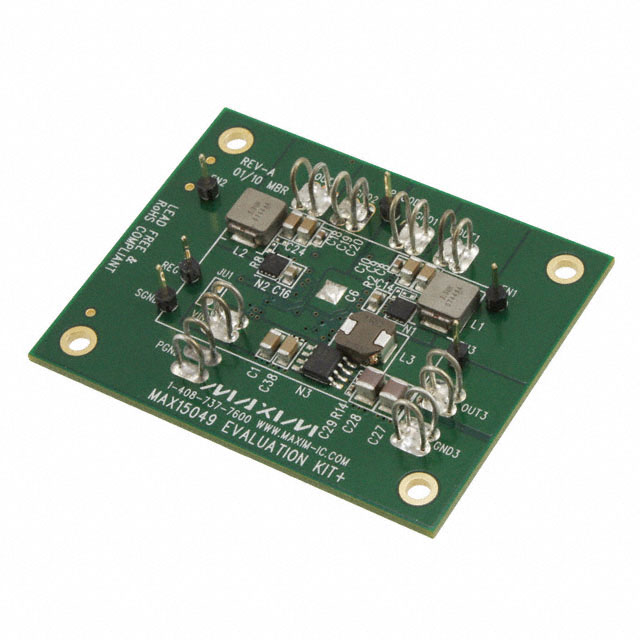

MAX15049EVKIT+

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX15049EVKIT+ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX15049EVKIT+
Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX15049
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 687 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$50.671

Product parameter
Data sheet

Product parameter

Part Number	MAX15049EVKIT+	Manufacturer	Maxim Integrated
Description	EVAL KIT FOR MAX15049	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	687 pcs	Data sheet	MAX15048,49 MAX15049 Eval Kit
Category	Development Boards, Kits, Programmers	Voltage - Output	1.2V, 1.8V, 3.3V
Voltage - Input	5 V ~ 16 V	Utilized IC / Part	MAX15049
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	3, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	500kHz	Detailed Description	MAX15049 - DC/DC, Step Down 3, Non-Isolated Outputs Evaluation Board
Current - Output	6A, 3A, 3A	Board Type	Fully Populated
