Home > Products > Integrated Circuits (ICs) > Clock/Timing - Real Time Clocks > DS1685E-5+

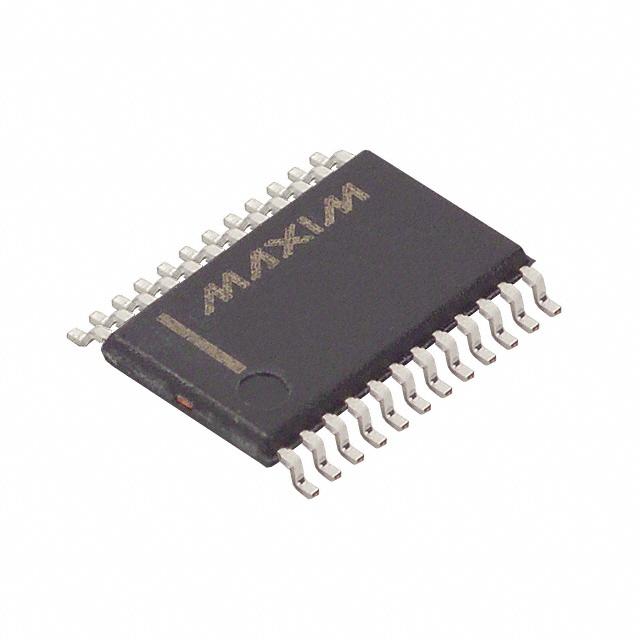

DS1685E-5+

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DS1685E-5+ with confidence from Components-World.HK, 1 Year Warranty

Dowload DS1685E-5+ Details in PDF

Request a Quote

Part Number	DS1685E-5+
Manufacturer	Maxim Integrated
Description	IC RTC CLK/CALENDAR PAR 24-TSSOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	1000 pcs
~~In Stock~~ 31454 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.291	$2.176	$2.008	$1.908
	$1.726	$1.639	$1.23

Product parameter
Data sheet

Product parameter

Part Number	DS1685E-5+	Manufacturer	Maxim Integrated
Description	IC RTC CLK/CALENDAR PAR 24-TSSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31454 pcs	Data sheet	DS1685, 87
Category	Integrated Circuits (ICs)	Voltage - Supply, Battery	2.5 V ~ 3.7 V
Voltage - Supply	4.5 V ~ 5.5 V	Type	Clock/Calendar
Time Format	HH:MM:SS (12/24 hr)	Supplier Device Package	24-TSSOP
Series	-	Packaging	Tube
Package / Case	24-TSSOP (0.173", 4.40mm Width)	Other Names	DS1685E5
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Memory Size	242B
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Features	Alarm, NVSRAM, Square Wave Output, Y2K
Detailed Description	Real Time Clock (RTC) IC Clock/Calendar 242B Parallel 24-TSSOP (0.173", 4.40mm Width)	Date Format	YY-MM-DD-dd
Current - Timekeeping (Max)	3mA @ 5V	Base Part Number	DS1685
