NPF-120-12

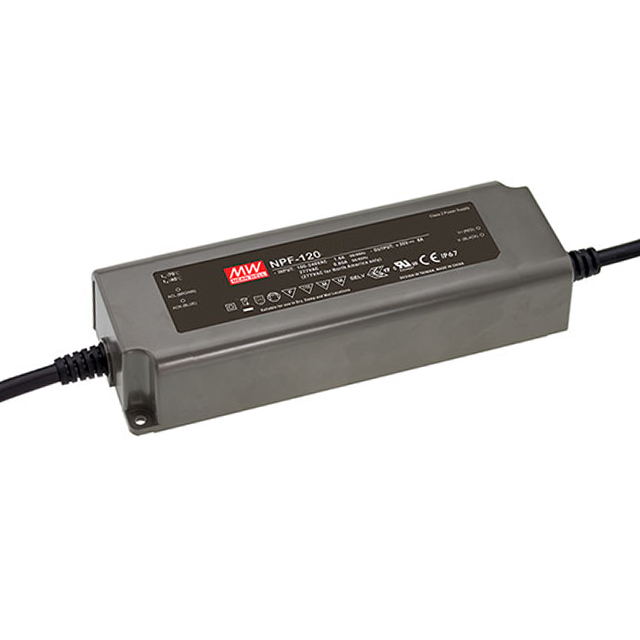

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NPF-120-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NPF-120-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NPF-120-12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | LED DRVR CC/CV AC/DC 7.2-12V 10A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $16.224 | $14.749 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NPF-120-12 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | LED DRVR CC/CV AC/DC 7.2-12V 10A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2398 pcs | Data sheet | NPF-120 Series Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output | 7.2 ~ 12 V |
| Voltage - Isolation | 3.75kV | Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC | Type | Constant Current, Voltage |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | Series | NPF-120 |
| Ratings | IP67 | Power (Watts) | 120W |
| Other Names | 1866-3549 NPF-120-12-ND |
Operating Temperature | -40°C ~ 90°C |
| Number of Outputs | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OCP, OTP, OVP, SCP |
| Efficiency | 89% | Dimming | - |
| Detailed Description | 10A 7.2 ~ 12 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output | Current - Output (Max) | 10A |
| Approvals | CB, CCC, CE, cURus, ENEC |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
